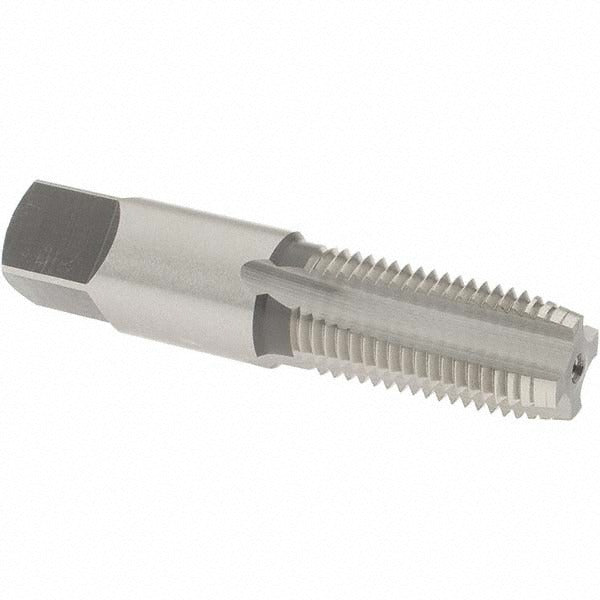

Osg 1332800 Pipe Tap 1/4-18 Npsf 4 Flute Hss

Product Description

The OSG 1332800 is a standard pipe tap designed to cut internal NPSF (National Pipe Straight Fuel) threads in a variety of metals. It produces 1/4-18 threads - meaning 1/4-inch nominal pipe size at 18 threads per inch - and is suited for applications requiring a straight, pressure-tight thread form. Built from high-speed steel (HSS) with a bright/uncoated finish, this tap offers solid wear resistance across a range of materials. The 4-flute configuration provides balanced cutting action and adequate chip clearance. Thread length is 1-1/16 inches with an overall length of 2.437 inches. Licensed plumbers, pipefitters, and machinists are the primary installers.

This tap is used in production and maintenance environments where NPSF straight pipe threads are required, including fuel line fittings, hydraulic connections, and precision fluid-system components. It performs in aluminum, carbon steel, cast iron, and hardened steel. The regular hook geometry makes it appropriate for through-hole and blind-hole tapping in these materials. It is a Series 109 tap and fits standard tap wrenches and CNC tapping setups sized for its 0.5625-inch shank diameter.

Key Features

• 1/4-18 NPSF thread form - straight pipe thread for fuel and fluid fittings
• High-speed steel construction for durability across multiple materials
• 4 flutes with regular hook for balanced cutting and chip evacuation
• Bright/uncoated finish - compatible with most cutting fluids without coating interference
• 1-1/16-inch thread length with 2.437-inch overall length
• 0.5625-inch shank diameter fits standard tap holders and CNC tooling

Compatibility

Rated for use in aluminum, carbon steel, cast iron, and hardened steel. Designed for standard tap wrenches and CNC tapping setups accepting a 0.5625-inch shank. Suitable for any application requiring NPSF straight pipe threads at 1/4-18.

Installation Notes

Tap installation should be performed by a qualified machinist, pipefitter, or plumber using appropriate cutting fluid for the workpiece material. Ensure the pilot hole is drilled to the correct tap drill size for 1/4-18 NPSF before tapping. Secure the workpiece fully before applying torque, and back off periodically to break chips when tapping deeper holes. Always follow applicable shop safety and code requirements for the system being worked on.
