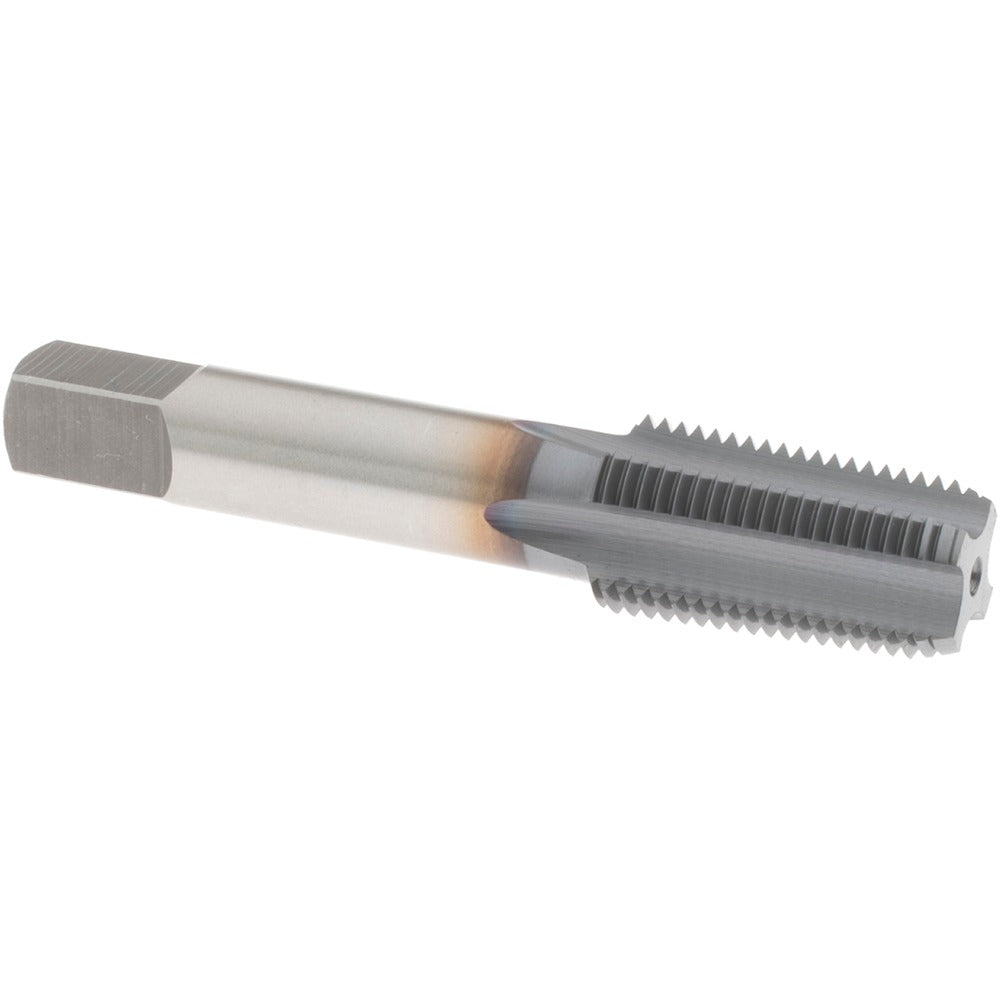

Osg 1310208 Pipe Tap 1/8-27 Npt Modified Bottoming Ticn Hss

Product Description

The OSG 1310208 is a standard pipe tap designed to cut 1/8-27 NPT internal pipe threads in metal workpieces. Built from high-speed steel with a titanium carbonitride (TiCN) finish, it delivers improved wear resistance and longer tool life compared to uncoated HSS taps. The modified bottoming chamfer allows threading closer to the bottom of a blind hole while still providing enough lead-in for controlled thread engagement. With 4 flutes and a 0.75-inch thread length, this tap is suited for production tapping and maintenance applications where accurate NPT thread form is required. Overall length is 2.126 inches. Weight is 0.055 pounds.

This tap is used to create tapered NPT pipe threads for fluid and gas fittings in plumbing, HVAC, and general mechanical assemblies. It is appropriate for threading 1/8-27 NPT ports in carbon steel, cast iron, and aluminum workpieces. Typical install scenarios include machining threaded ports in valve bodies, manifolds, fittings, and equipment housings where a pressure-tight pipe thread connection is required. The OSG Series 108 designation places this tap in a family of standard pipe taps intended for shop and field use.

Key Features

• 1/8-27 NPT thread form produces tapered pipe threads per standard specification
• TiCN coating increases surface hardness and reduces friction for extended tool life
• Modified bottoming chamfer allows threading nearer to the bottom of a blind hole
• 4-flute geometry provides chip clearance and stable cutting action
• High-speed steel construction handles carbon steel, cast iron, and aluminum
• 0.3125-inch shank diameter and 0.234-inch square size fit standard tap wrenches and holders

Compatibility

Designed for cutting 1/8-27 NPT internal pipe threads in carbon steel, cast iron, and aluminum workpieces. Fits standard tap wrenches and machine holders accepting a 0.3125-inch shank diameter.

Installation Notes

This tap is installed by machinists and maintenance technicians using a tap wrench, tapping head, or machine spindle. Always drill the correct NPT tap drill size and apply cutting fluid appropriate for the workpiece material before tapping. Back the tap out periodically to clear chips, especially in blind holes. Follow applicable shop safety practices and ensure the workpiece is securely fixtured before beginning the tapping operation.
