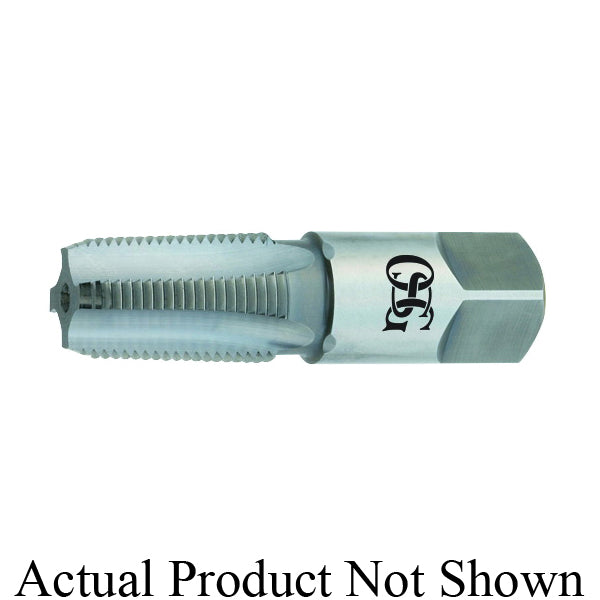

OSG 1310101 108 Long Shank Straight Flute Pipe Tap 1/8-27

Product Description

The OSG 1310101 is a long shank straight flute pipe tap designed to create threads in various materials. This tap has a thread size of 1/8-27 and is made from high-speed steel (HSS), providing durability and wear resistance. It features a tapered chamfer type of 2.5P, allowing for easier entry into the material. The overall length is two point twelve inches with a thread length of zero point seven five one inches.

• Made from high-speed steel for lasting performance.
• Four flutes for effective chip removal.
• Right-hand cutting for ease of use.

Product Highlights

This product is ideal for general threading applications and is suitable for use in various industries.

Product Information

Standard Information

• Series: 108
• Country of Origin: BR

Technical Specifications

• Type: Long Shank
• Material: HSS
• Thread Size: 1/8-27
• Chamfer Type: 2.5P Tapered
• Shank Length: 1-23/64 in
• Thread Length: 0.751 in
• Finish/Coating: Steam Oxide
• Overall Length: 2.12 in
• Shank Diameter: 0.437 in
• Thread Standard: NPT
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
