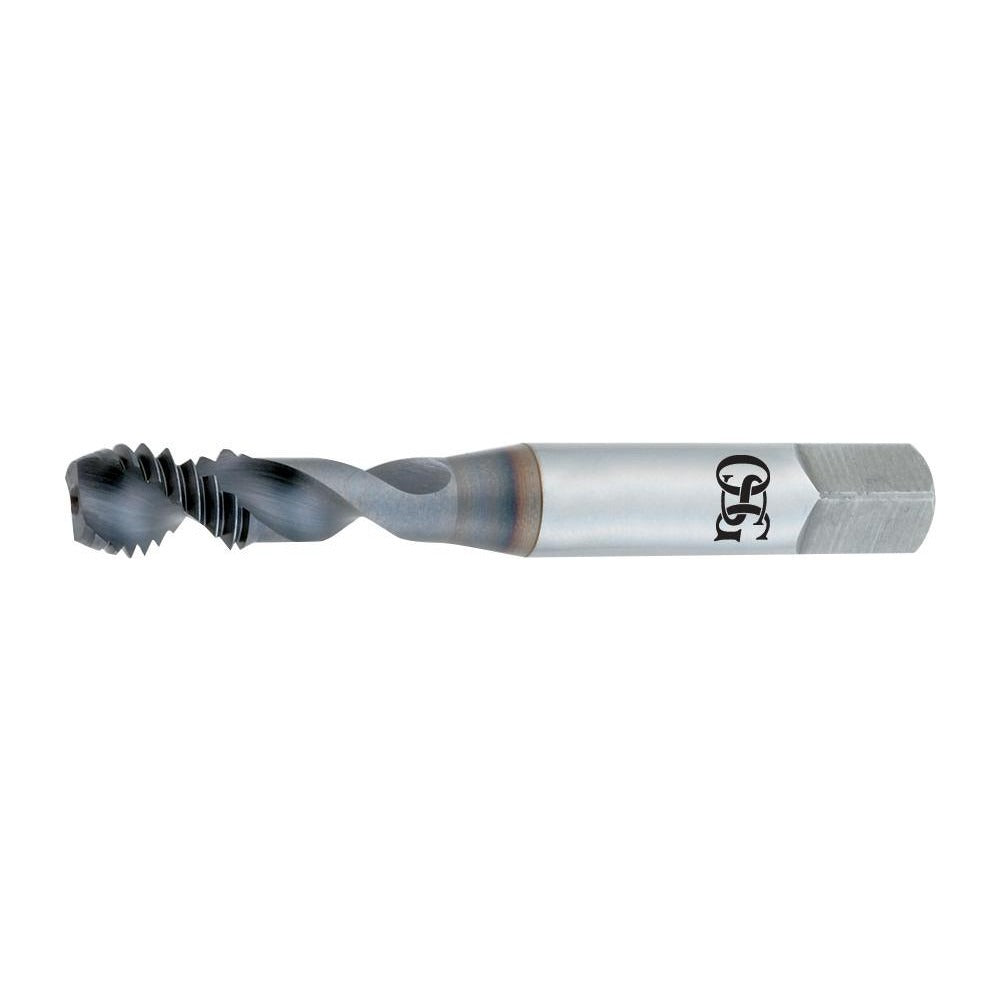

Osg 1305800308 Spiral Flute Tap Unc 10-24 2 Flute

Product Description

The OSG 1305800308 is a spiral flute tap designed to cut unified national coarse (UNC) internal threads in a 10-24 size. Built from vanadium high-speed steel with a V-finish coating, it delivers consistent thread quality in production and repair applications. The 2-flute, 45-degree helix design evacuates chips efficiently in blind-hole and through-hole work. The modified bottoming chamfer allows threading close to the bottom of a blind hole. At 2.375 inches overall length with a 0.194-inch shank diameter, it fits standard tap holders and machine spindles used by machinists and tool-and-die technicians.

This tap is suited for threading aluminum and similarly machinable materials where chip evacuation is a priority. The spiral flute geometry pulls chips up and out of the hole, reducing the risk of chip packing in blind bores. It carries a 2B class of fit, the standard tolerance class for general-purpose UNC fastener threads used across industrial, HVAC equipment, and mechanical assembly work. Right-hand flute and right-hand thread direction match conventional tapping setups on manual machines and CNC machining centers alike.

Key Features

• 45-degree helix spiral flute promotes upward chip evacuation in blind holes
• Modified bottoming chamfer allows threading closer to hole bottom than a standard taper or plug tap
• Vanadium high-speed steel construction with V-finish coating for wear resistance
• 2B class of fit meets standard tolerance requirements for UNC general-purpose threads
• Right-hand thread and flute direction for use in conventional tapping setups
• Optimized for aluminum and other free-machining materials

Compatibility

Designed as an OEM-style replacement or direct-use spiral flute tap for standard 10-24 UNC tapping applications in manual and CNC setups accepting a 0.194-inch shank diameter.

Installation Notes

A licensed machinist or qualified toolroom technician should install and operate this tap. Secure the workpiece fully before tapping and ensure the tap is properly aligned with the drilled pilot hole to prevent breakage. Use cutting fluid appropriate for the workpiece material, particularly when tapping aluminum. Follow applicable shop safety and machine guarding practices during operation.
