Osg 1294501 Extension Tap 10-24 Unc H3 Spiral Point

Product Description

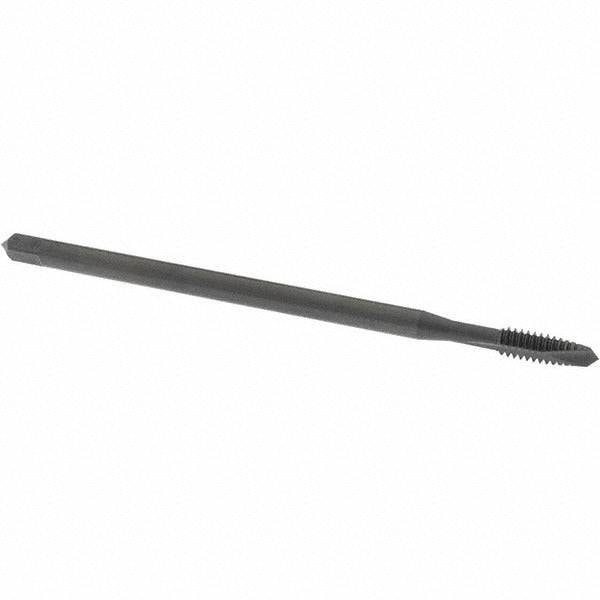

The OSG 1294501 is a spiral point plug extension tap designed for threading operations in extended-reach applications where a standard-length tap cannot access the workpiece. Built from high-speed steel with a steam oxide finish, it cuts right-hand threads to the 10-24 UNC standard with an H3 thread limit for consistent tolerance control. The 4-inch overall length and reduced shank design allow the tap to reach deep into bores or recessed features. The 2-flute spiral point geometry pushes chips forward ahead of the cutting zone, making it well-suited for through-hole threading. This tap is installed by machinists and tool-and-die professionals using a tap wrench, drill press, or CNC tapping cycle.

This extension tap is used in production and maintenance machining environments where threading must be performed in hard-to-reach locations. It is suited for threading cast iron, aluminum castings, aluminum, and carbon steel workpieces. The plug chamfer style requires a pre-drilled or bored through-hole before tapping. The 7/8-inch thread length and 2B class of fit make it appropriate for standard-tolerance fastener applications in both light-duty and structural assemblies.

Key Features

• Spiral point plug geometry drives chips forward for clean through-hole threading
• H3 thread limit provides consistent fit for 2B class-of-fit requirements
• 4-inch overall length with reduced shank for extended-reach access
• High-speed steel construction handles cast iron, aluminum, and carbon steel
• Steam oxide finish reduces friction and provides light corrosion resistance
• Right-hand flute and right-hand thread direction for standard tapping setups

Compatibility

Designed as a direct-use extension tap for through-hole 10-24 UNC threading in cast iron, aluminum casting, aluminum, and carbon steel. Compatible with standard tap wrenches and machine tool holders accepting a 0.194-inch shank diameter with a 0.152-inch square drive.

Installation Notes
