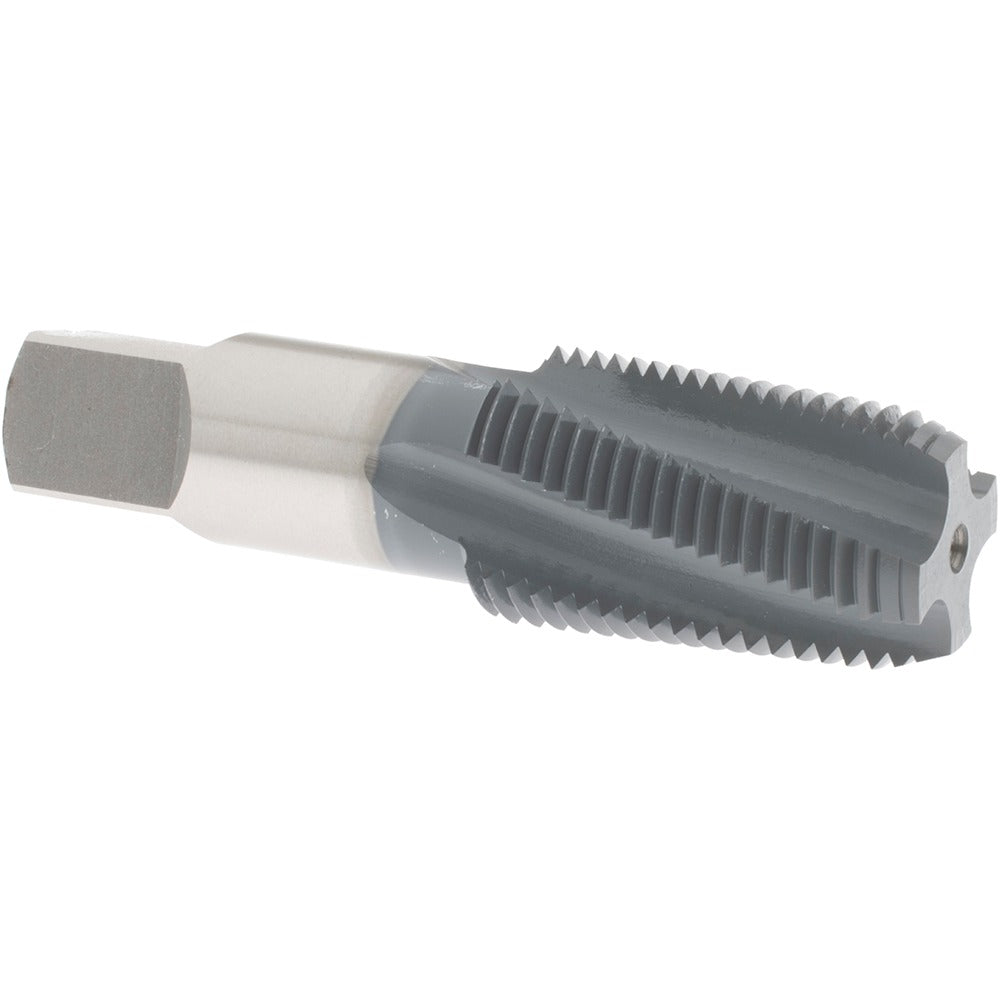

Osg 1252102 Spiral Flute Pipe Tap 1/2-14 Npt Hss

Product Description

The OSG 1252102 is a spiral flute pipe tap designed for cutting 1/2-14 NPT internal pipe threads in production and maintenance applications. Built from high-speed steel (HSS) with an elektraLUBE finish, it features a 15-degree helix angle and four flutes that channel chips up and out of the hole during tapping. The bottoming chamfer allows threading close to the bottom of a blind hole where standard taper-chamfer taps cannot reach. With an overall length of 3-1/8 inches and a thread length of 1-3/8 inches, this tap suits both hand and machine tapping operations in pipe fitting work.

This tap is intended for tapping NPT-standard pipe threads in metal workpieces, including ferrous and non-ferrous stock. It is commonly used in plumbing, HVAC, and industrial pipe fitting applications where a leak-free tapered pipe thread is required. The spiral flute design makes it particularly suited for blind-hole tapping where straight-flute taps would pack chips into the bore. Machinists, pipefitters, and maintenance technicians use this tap in drill presses, CNC tapping machines, and tapping arms.

Key Features

• 1/2-14 NPT thread form for standard tapered pipe thread connections
• 15-degree helix angle with 4 right-hand spiral flutes for upward chip evacuation
• Bottoming chamfer for threading close to the base of blind holes
• High-speed steel construction for durability across a range of metalworking applications
• elektraLUBE coating reduces friction and extends tool life between resharpening cycles
• Series S125 design with no coolant-through requirement, compatible with flood or manual lubrication

Compatibility

Designed as an OEM-style replacement or direct selection for 1/2-14 NPT spiral flute tapping operations in standard machine tapping and hand tapping setups that accept a 0.6875-inch shank diameter.

Installation Notes

This tap should be installed by a qualified machinist or pipefitter familiar with NPT thread standards and tapping equipment. Ensure the workpiece is securely fixtured and the tap is properly aligned before beginning the cut to prevent tap breakage. Apply appropriate cutting fluid or tap oil before and during the operation. Disconnect or de-energize machine spindles before changing or inspecting taps.
