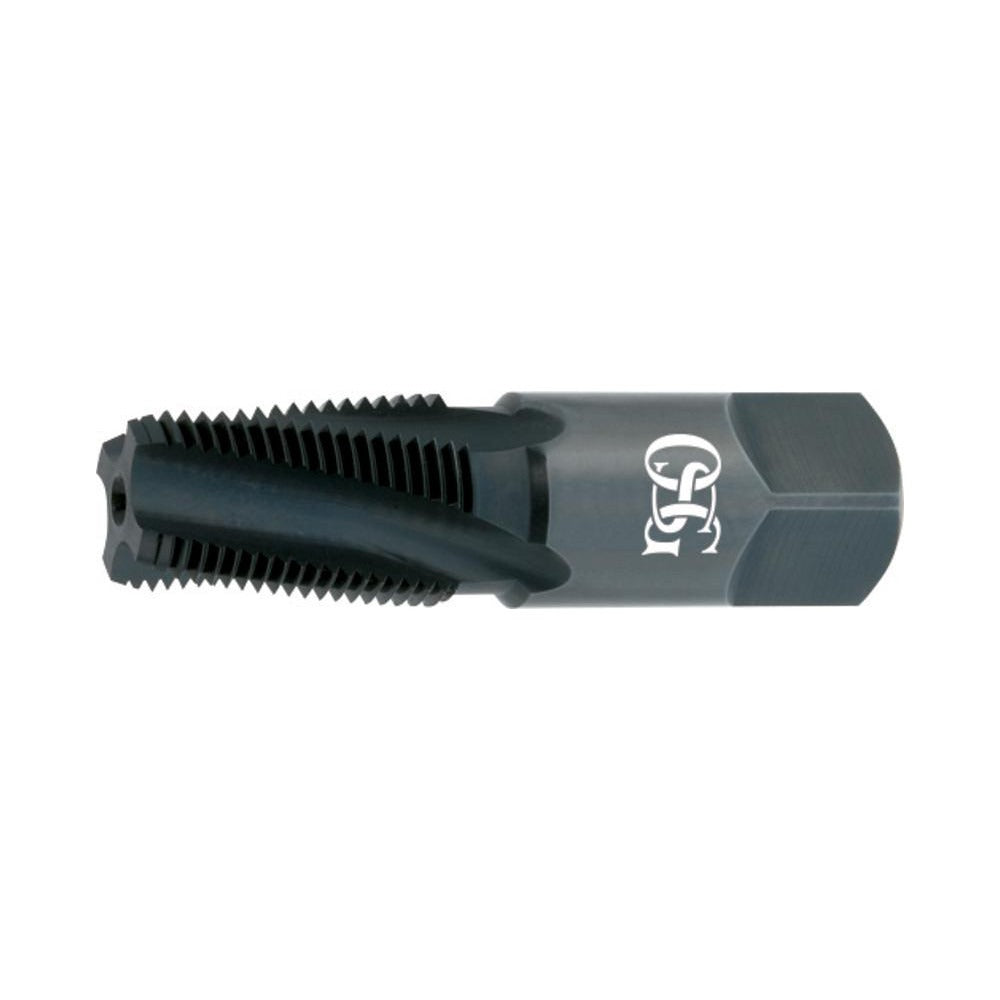

Osg 1252100 Spiral Flute Pipe Tap 1/2-14 Npt Hss

Product Description

The OSG 1252100 is a spiral flute pipe tap designed to cut 1/2-14 NPT internal pipe threads in a range of metallic workpiece materials. The 4-flute, right-hand spiral design with a 15-degree helix angle evacuates chips upward out of blind and through holes, reducing the risk of chip packing during the tapping cycle. Manufactured from high-speed steel with a bright finish, the tap delivers consistent thread form geometry across production and maintenance applications. Thread length measures 1-3/8 inches, overall length is 3-1/8 inches, and the shank diameter is 0.6875 inches. The bottoming chamfer allows threading close to the bottom of a hole where thread engagement depth is critical.

This tap is suited for threading pipe fittings, manifolds, ports, and housings in plumbing, hydraulic, pneumatic, and general industrial applications. The NPT thread standard produces a tapered thread profile that creates a pressure-tight seal when properly assembled with compatible fittings. Material compatibility includes aluminum, carbon steel, cast iron, and hardened steel, making the 1252100 appropriate for job shop, MRO, and production floor environments where diverse workpiece materials are encountered. It belongs to OSG Series S125.

Key Features

• 1/2-14 NPT thread size with tapered thread form for pressure-tight pipe connections
• 4-flute right-hand spiral design at 15-degree helix angle for upward chip evacuation
• Bottoming chamfer allows threading close to the base of a blind hole
• High-speed steel construction provides wear resistance across multiple workpiece materials
• Bright finish - no coating applied, suitable for use with cutting fluid or tap oil
• Compatible with aluminum, carbon steel, cast iron, and hardened steel

Compatibility

Designed for cutting 1/2-14 NPT internal pipe threads in aluminum, carbon steel, cast iron, and hardened steel workpieces. Fits standard tap holders and machine tool spindles accepting a 0.6875-inch shank diameter.

Installation Notes

Install in a tapping head, CNC machining center, or drill press configured for the correct spindle speed and feed rate for the workpiece material. Secure the workpiece fully before initiating the tapping cycle. Apply a suitable cutting fluid or tap oil to extend tool life and improve thread finish. Inspect the tap for wear or chipping before each use and replace any tap showing visible damage to avoid thread quality issues or tool breakage.
