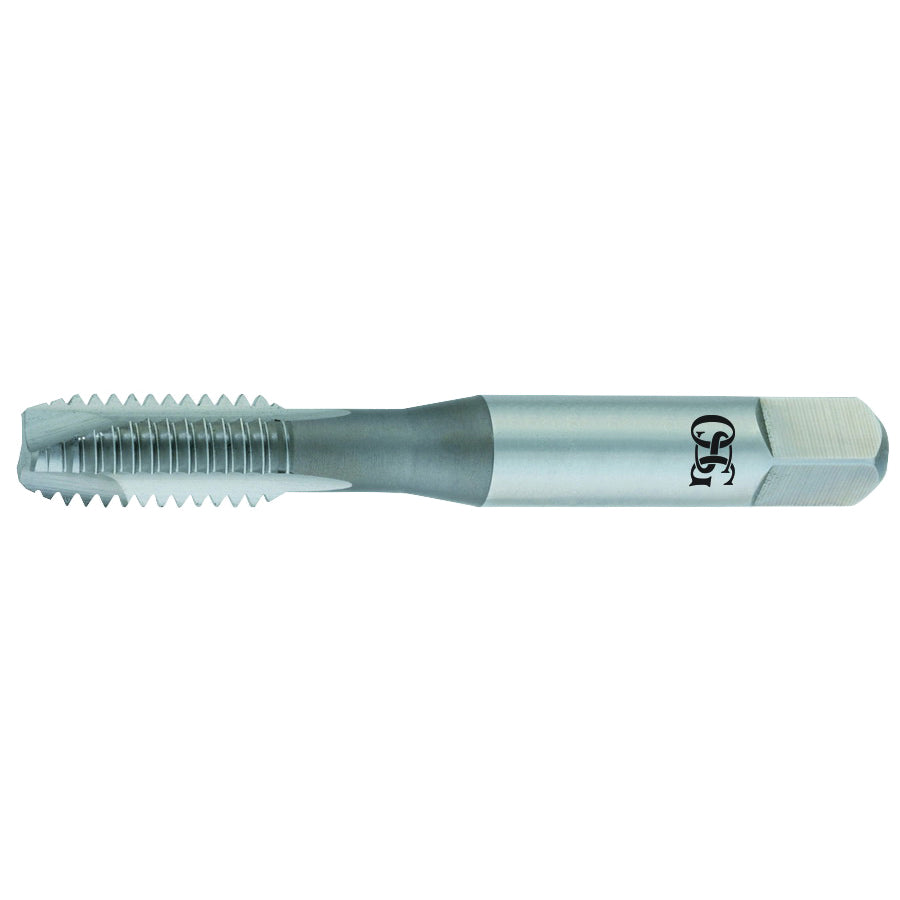

OSG 1225800 105 Spiral Point Tap, Right Hand Cutting, 5/16-18 Thread, H2 Thread Limit, 3.5P-4.5P Plug Chamfer

Product Description

The OSG 1225800 is a spiral point tap designed for precision threading. This product features a right-hand cutting design and is made from high-speed steel (HSS). The tap is suitable for use on materials like aluminum, cast iron, and low to medium carbon steel.

• Size: 5/16-18 with H2 thread limit
• 2 flutes for efficient chip removal
• Overall length of 2.85 inches

Product Highlights

Ideal for general threading applications, this spiral point tap offers durability and efficiency.

Product Information

Standard Information

• Manufacturer: OSG
• Part Number: OSG1225800

Technical Specifications

• Series: 105
• Size: 5/16 inches
• Thread Size: 5/16-18
• Chamfer Type: 3.5P-4.5P Plug
• Class of Fit: H3
• Shank Length: 1-9/16 inches
• Thread Length: 0.835 inches
• Shank Diameter: 0.318 inches
• Overall Length: 2.85 inches
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Material Application: Aluminum, Aluminum Alloy, Cast Aluminum, Cast Iron, Low/Medium/High Carbon Steel
• Through Coolant: No
