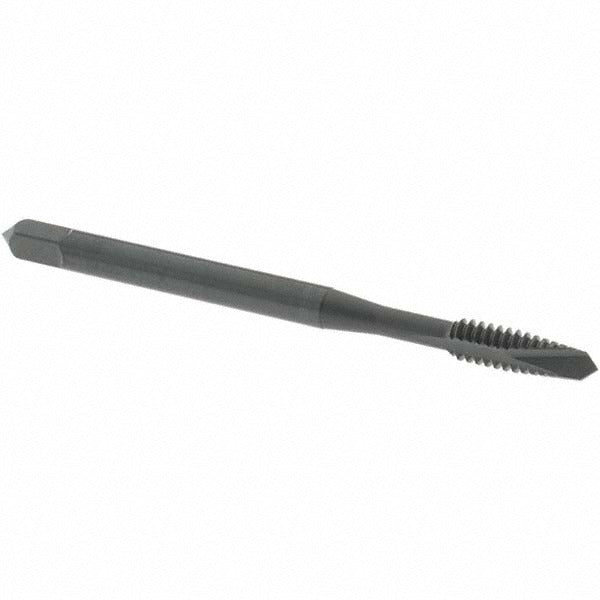

Osg 1212401 Spiral Point Tap 6-32 Unc Plug Hss

Product Description

The OSG 1212401 is a spiral point tap designed for cutting 6-32 UNC internal threads in a wide range of ferrous and non-ferrous materials. Built from high-speed steel with a steam oxide coating, this plug-chamfer tap drives chips forward ahead of the cutting zone, reducing clogging in through-hole applications. It carries an H3 thread limit and a 2B class of fit, making it suitable for standard tolerance threaded assemblies. The 2-inch overall length and 0.141-inch shank diameter fit standard tap holders used in manual and machine tapping operations. Machinists, maintenance technicians, and tool and die workers are the primary installers of this tap.

The OSG 1212401 is suited for through-hole tapping in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, and hardened steel. The plug chamfer style with 2 flutes and a right-hand thread direction makes it a practical choice for production tapping and repair work on machine components, electrical enclosures, and structural hardware where 6-32 UNC fasteners are standard. It is not designed for coolant-through applications.

Key Features

• 6-32 UNC thread form with right-hand cut and 2B class of fit
• High-speed steel construction with steam oxide coating for reduced friction and improved chip flow
• Spiral point design drives chips forward, optimized for through-hole tapping
• H3 thread limit for consistent tolerance in standard-fit assemblies
• 2-flute plug chamfer for easy entry and controlled cutting action
• Compatible with a broad material range including aluminum, cast iron, and carbon steel grades

Compatibility

Designed for through-hole tapping applications requiring 6-32 UNC threads in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, and hardened steel. Part of the OSG Series 105 tap line.

Installation Notes

This tap should be installed in a properly sized tap holder or chuck sized for a 0.141-inch shank diameter before use. Always ensure the workpiece is securely fixtured and the correct 6-32 tap drill size is used prior to tapping. Apply cutting fluid appropriate to the workpiece material to extend tool life and improve thread quality. This tap is intended for right-hand threading only and is not rated for coolant-through setups.
