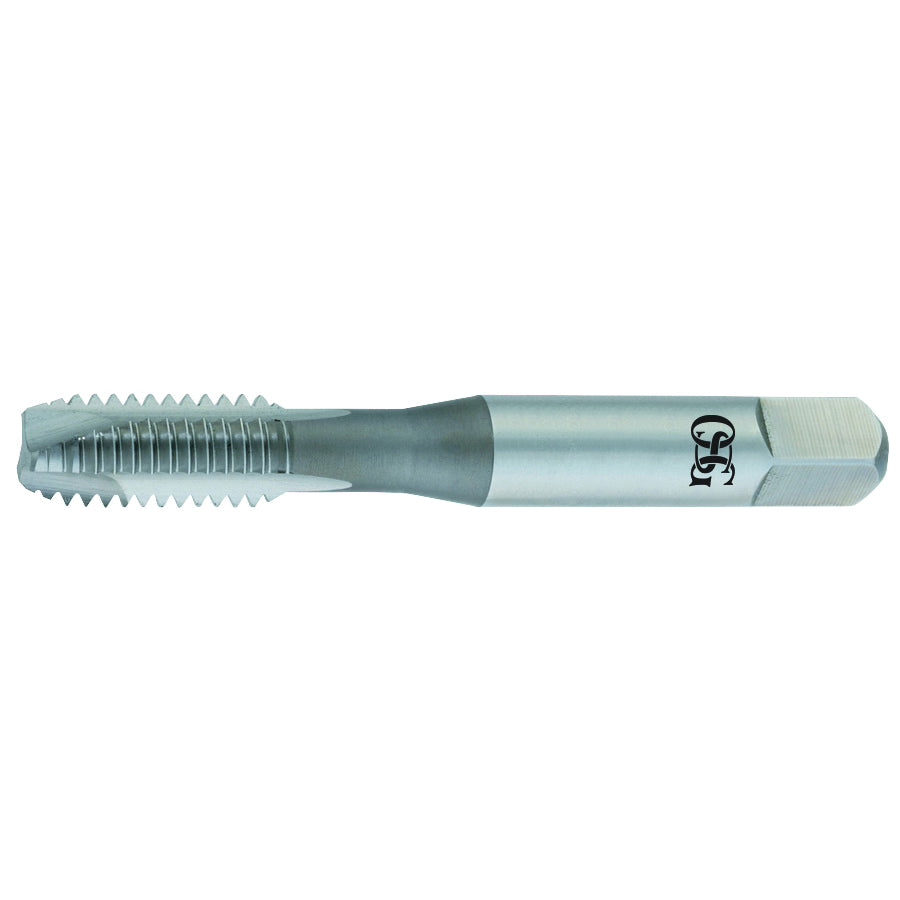

OSG 1208801 105 Spiral Point Tap, Right Hand Cutting, #10-32 Thread, H2 Thread Limit, 3.5P-4.5P Plug Chamfer

Product Description

The OSG Spiral Point Tap with MPN 1208801 is designed for threading applications. It features a #10-32 thread size and utilizes a right-hand cutting direction. The product is built using high-speed steel (HSS) for durability.

• Designed for general threading applications
• Manufactured with steam oxide surface for better lubricity
• Two flutes enhance chip removal

Product Highlights

This spiral point tap offers reliable performance in materials such as aluminum, cast iron, and carbon steel. With H2 thread limit, it ensures precision in threaded holes.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Series: 105
• Material: HSS
• Thread Size: #10-32
• Chamfer Type: 3.5P-4.5P Plug
• Class of Fit: H3
• Shank Length: 1-9/16 inches
• Thread Limit: H2
• Thread Length: 0.587 inches
• Finish/Coating: Steam Oxide
• Overall Length: 2.53 inches
• Shank Diameter: 0.194 inches
• Thread Standard: UNF
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum, Aluminum Alloy, Cast Aluminum, Cast Iron, Low/Medium/High Carbon Steel
• Through Coolant: No
