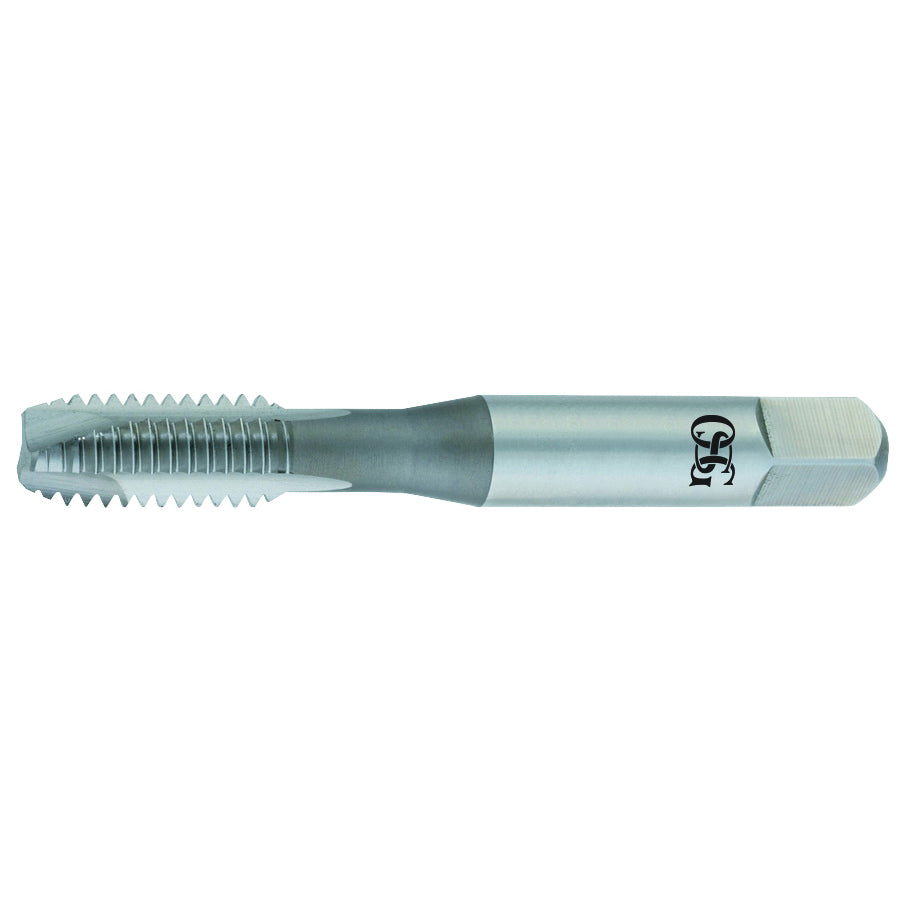

OSG 1208401 105 Spiral Point Tap Right Hand Cutting #10-24 Thread H2 Thread Limit

Product Description

The OSG Spiral Point Tap, MPN 1208401, is designed for effective threading in various materials. This product features a right-hand cutting action and is suitable for use in applications involving aluminum, aluminum alloy, cast aluminum, cast iron, and low, medium, or high carbon steel. Its 3.5P-4.5P plug chamfer and two flutes enhance performance and efficiency.

• Size: #10-24 UNC thread
• Material: High-speed steel (HSS)
• Finish: Steam oxide for lubrication and wear resistance

Product Highlights

This tap is engineered for general-purpose threading. It offers increased wear resistance and is treated with a steam oxide finish to improve lubricity.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Size: #10
• Series: 105
• Material: HSS
• Thread Size: #10-24
• Chamfer Type: 3.5P-4.5P Plug
• Class of Fit: H3
• Shank Length: 1-9/16 in
• Thread Length: 0.587 in
• Finish/Coating: Steam Oxide
• Overall Length: 2.53 in
• Shank Diameter: 0.194 in
• Thread Standard: UNC
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum, Aluminum Alloy, Cast Aluminum, Cast Iron and Low/Medium/High Carbon Steel
• Through Coolant (Yes/No): No
