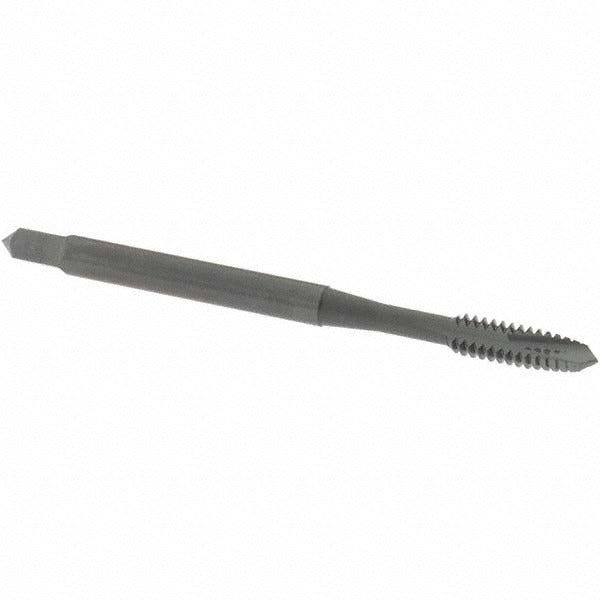

Osg 1207401 Spiral Point Tap 6-32 Unc Plug Hss

Product Description

The OSG 1207401 is a spiral point tap designed for cutting internal threads in a wide range of ferrous and non-ferrous materials. It produces a 6-32 UNC thread form with a plug chamfer, right-hand thread direction, and a 3B class of fit. The tap is manufactured from high-speed steel and finished with a steam oxide coating that helps reduce friction and resist corrosion during use. With 2 flutes and an H2 thread limit, it is suited for through-hole tapping applications where chips can be pushed ahead of the cutting edges. Overall length is 2 inches, and thread length is 11/16 inches (0.39 inches decimal). Shank diameter is 0.141 inches.

This tap is used in production and maintenance machining environments for threading through-holes in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, and hardened steel. The spiral point geometry makes it a practical choice for CNC tapping operations and hand-tapping setups where chip evacuation forward through the hole is desirable. It is appropriate for both shop and field repair applications requiring a standard 6-32 UNC fastener thread.

Key Features

• 6-32 UNC thread form with plug chamfer for gradual thread engagement
• Spiral point design pushes chips forward, suited for through-hole applications
• High-speed steel construction for durability across a broad range of workpiece materials
• Steam oxide coating reduces friction and provides light corrosion resistance
• H2 thread limit and 3B class of fit for standard tolerance threading
• Right-hand cut with 2 flutes for efficient chip clearance in through-holes

Compatibility

Designed for through-hole tapping of 6-32 UNC threads in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, and hardened steel workpieces. Part of OSG Series 105.

Installation Notes

Installation is performed by machinists and maintenance technicians using a tap wrench, tapping head, or CNC rigid tapping cycle. Ensure the workpiece is secured and the pilot hole is drilled to the correct tap drill size for a 6-32 UNC thread before beginning. Apply appropriate cutting fluid for the workpiece material to extend tap life and improve thread quality. Do not force the tap if resistance increases unexpectedly, as this may indicate chip packing or misalignment.
