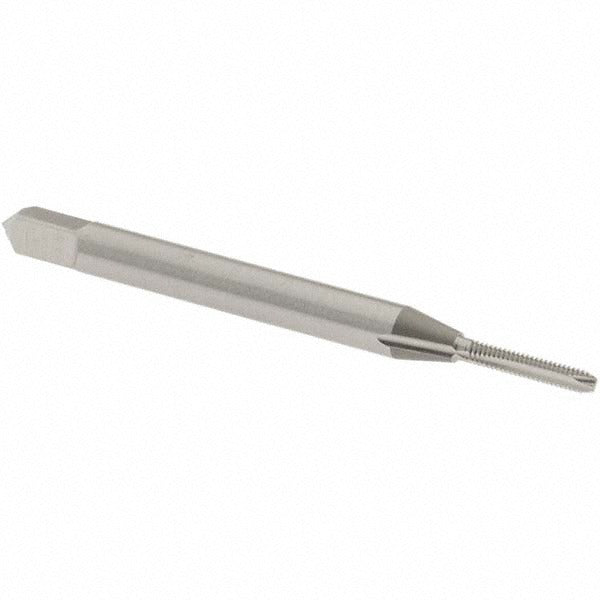

Osg 1200100 Spiral Point Tap 0-80 Unf 2 Flute Hss Bright

Product Description

The OSG 1200100 is a spiral point tap designed for cutting internal 0-80 UNF threads in a wide range of metals. It features a bottoming chamfer for threading close to the bottom of a blind hole, 2 flutes, and an H1 thread limit for tight tolerance control. Built from high-speed steel with a bright finish, it covers a broad range of ferrous and non-ferrous materials. Overall length is 1.625 inches with a thread length of 0.311 inches (5/16 inches). Shank diameter is 0.141 inches. This tap is intended for use by machinists, toolroom technicians, and maintenance professionals working on precision assemblies.

The 1200100 is suited for tapping 0-80 UNF threads in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, and hardened steel. Its spiral point geometry pushes chips forward ahead of the tap, making it well-suited for through-hole applications. The bottoming chamfer allows the tap to cut threads to within a few threads of a blind hole bottom, which is critical in small fastener and instrument applications. This is a right-hand tap in OSG Series 105B.

Key Features

• 0-80 UNF thread form with 3B class of fit for precise internal thread engagement
• Bottoming chamfer for threading near the bottom of blind holes
• H1 thread limit for consistent, tight-tolerance thread production
• High-speed steel construction handles a broad spectrum of workpiece materials
• Spiral point geometry pushes chips forward, reducing clogging in through-hole applications
• Bright finish with no coolant-through requirement, compatible with standard cutting fluids

Compatibility

Designed for cutting 0-80 UNF right-hand internal threads in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, high-carbon steel, and hardened steel workpieces. Fits standard 0-80 tap holders and collet chucks sized for a 0.141-inch shank diameter.

Installation Notes

This tap should be installed and operated by a qualified machinist or toolroom technician. Secure the tap in an appropriately sized tap holder or collet chuck before use. Apply a suitable cutting fluid for the workpiece material to extend tool life and improve thread quality. Always drill the correct tap drill diameter and clear chips frequently to avoid tap breakage, particularly in blind holes.
