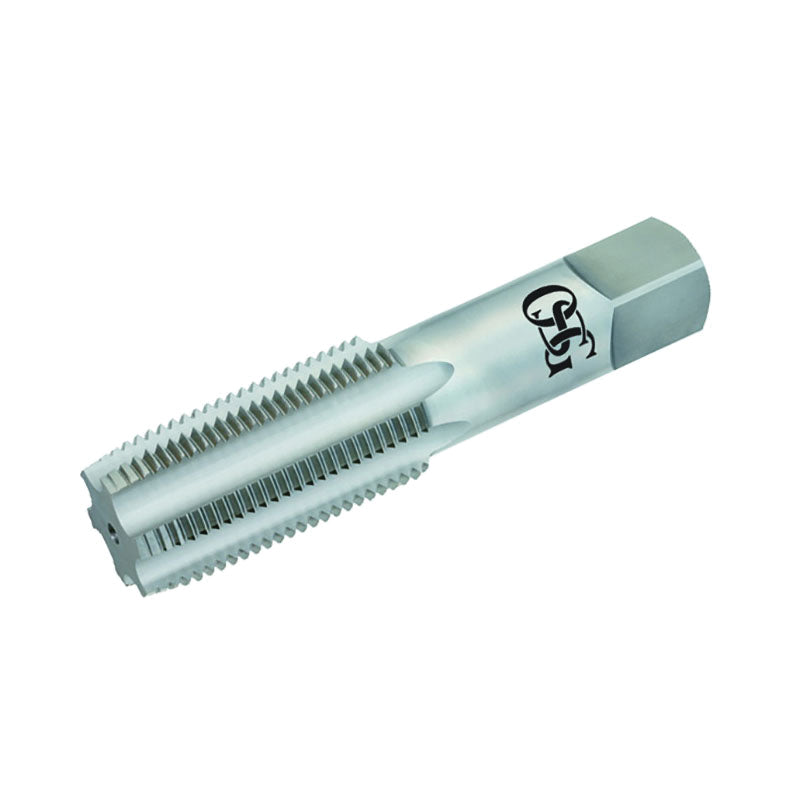

OSG 1172600 103 General Purpose Straight Flute Hand Tap Right Hand Cutting 1/2-13 Thread H3 Thread Limit 1.5P-2P Bottoming Chamfer

Product Description

OSG offers the 1172600, a general purpose straight flute hand tap for threading applications. This tap features right hand cutting operation and is designed for use with a range of metals. It is suitable for various materials including aluminum alloy, cast iron, and carbon steel.

• General purpose application for threading
• Three flutes increase efficiency
• HSS material for durability

Product Highlights

This tap is ideal for both blind and through-hole applications and offers H3 thread limits with a bright finish for reduced friction. It's part of OSG's extensive tap offering.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: BR

Technical Specifications

• Type: General Purpose
• Series: 103
• Material: HSS
• Thread Size: 1/2-13
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-17/32 in
• Thread Limit: H3
• Thread Length: 1.154 in
• Finish/Coating: Bright
• Overall Length: 3.37 in
• Shank Diameter: 0.367 in
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metals
• Through Coolant: No
