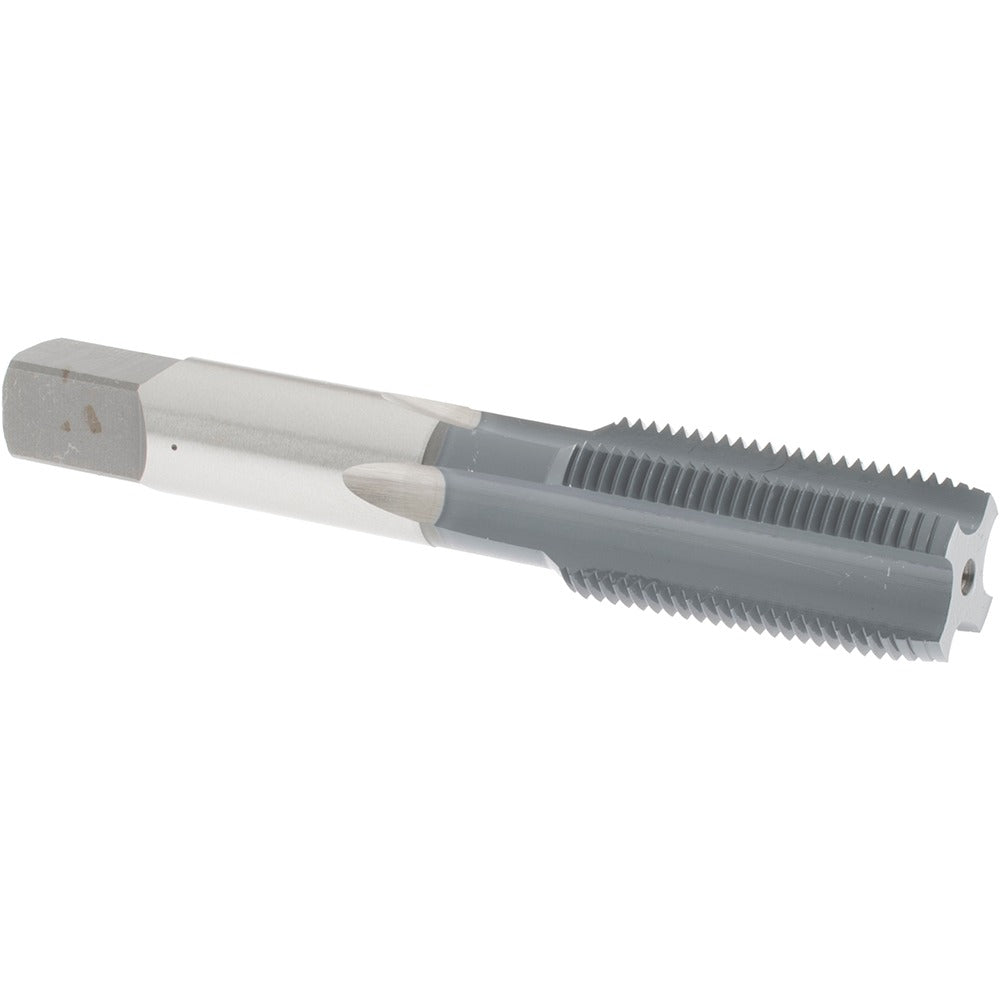

Osg 1125202 Straight Flute Tap 3/4-16 Unf 4 Flute Hss

Product Description

The OSG 1125202 is a straight flute tap designed for cutting internal 3/4-16 UNF right-hand threads in a wide range of ferrous and non-ferrous metals. It is manufactured from high-speed steel and features a plug chamfer, which distributes the cutting load across the first few threads for controlled thread entry. With 4 flutes and a 3B class of fit, this tap produces threads suited to standard fastener tolerances. The H3 thread limit provides a defined oversize allowance to account for material springback. At 4.25 inches overall length with a 2-inch thread length, it fits standard tap handles and CNC toolholders used in machine shop and production environments.

This tap is suited for tapping operations in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. It is appropriate for both hand tapping and machine tapping applications where straight-flute geometry is preferred, such as through-hole and blind-hole tapping in stable, non-stringy materials. Machinists, toolroom technicians, and maintenance professionals working on threaded fastener repairs or new production threading operations are the primary users of this tap.

Key Features

• 3/4-16 UNF thread form for fine-pitch internal threading
• Plug chamfer distributes entry cutting load over the leading threads
• High-speed steel construction handles a broad range of workpiece materials
• 4 flutes provide chip clearance and thread-form consistency
• H3 thread limit compensates for material springback to maintain 3B fit
• Right-hand thread direction compatible with standard tap drives and CNC spindles

Compatibility

Designed for use in tapping 3/4-16 UNF threads in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel workpieces. Part of OSG Series 101.

Installation Notes

This tap should be installed and operated by qualified machinists or toolroom technicians familiar with thread-cutting procedures. Power down or lock out any machine tool before loading the tap into the holder. Use appropriate cutting fluid for the workpiece material to reduce heat buildup and extend tool life. Do not force the tap if resistance increases unexpectedly - back off to clear chips before continuing, especially in blind-hole applications.
