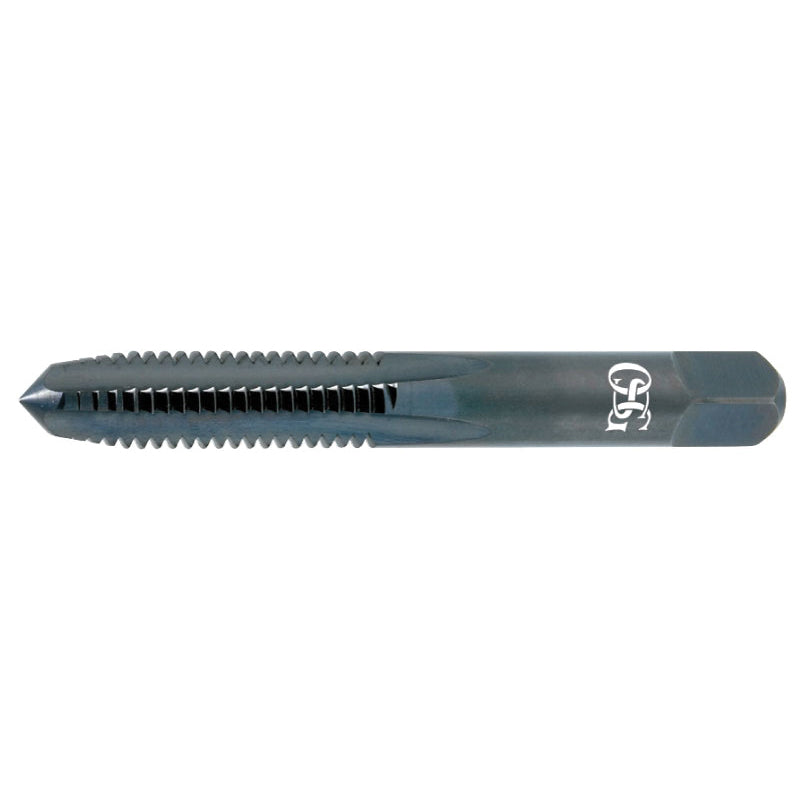

OSG 1124901 101 General Purpose Straight Flute Hand Tap Right Hand Cutting 3/4-10 Thread H3 Thread Limit

Product Description

OSG offers the 1124901 general purpose straight flute hand tap for common threading tasks. This tap is designed for right hand cutting and has a thread size of three-fourth inch by ten. It features a thread limit of H3 and a plug chamfer of three point five P to four point five P. The tap is ideal for use in various materials including aluminum alloy and cast iron.

• Features four flutes for efficient chip removal.
• Made of high-speed steel (HSS) for durability.
• Compatible with UNC threading standards.

Product Highlights

This tapping tool is suitable for general threading applications and offers reliable performance.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: BR

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Thread Size: 3/4-10
• Chamfer Type: 3.5P-4.5P Plug
• Shank Length: 2 inches
• Thread Length: 1-1/2 inches
• Finish/Coating: Steam Oxide
• Overall Length: 4-1/4 inches
• Shank Diameter: 0.59 inches
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
