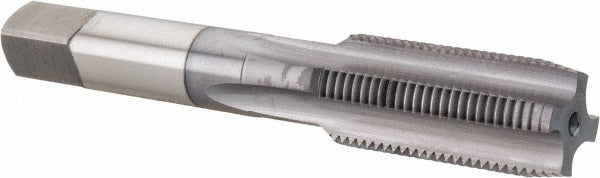

Osg 1124008 Straight Flute Tap 5/8-18 Unf Ticn Hss

Product Description

The OSG 1124008 is a straight flute tap designed to cut 5/8-18 UNF internal threads in a range of ferrous and non-ferrous materials. Built from high-speed steel (HSS) with a TiCN coating, it delivers extended tool life and reduced friction in production and maintenance threading operations. The plug chamfer style makes it well suited for through-hole applications where the tap can advance freely into the cut. With an overall length of 3-13/16 inches and a thread length of 1-13/16 inches, it fits standard tap holders and machine spindles used by machinists and maintenance technicians.

This tap is intended for use in machine shops, industrial maintenance environments, and precision manufacturing applications. It cuts right-hand 5/8-18 UNF threads to a 3B class of fit with an H3 thread limit, making it appropriate for applications requiring close tolerance internal threads. Material applications include aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel. It operates without coolant-through capability, so it is best suited for tapping machines or CNC equipment using flood or drip coolant externally.

Key Features

• 5/8-18 UNF right-hand thread form, 3B class of fit with H3 thread limit for controlled tolerance
• TiCN coating reduces friction and improves wear resistance across steel and aluminum workpieces
• High-speed steel construction handles a broad range of ferrous and non-ferrous materials
• Plug chamfer (4-5 thread lead) optimized for through-hole threading applications
• 4 straight flutes promote chip clearance in shorter-chipping materials
• Shank diameter of 0.48 inches with a 0.36-inch square drive for positive torque engagement in standard tap holders

Compatibility

Designed as an OSG Series 101 straight flute tap for use in standard tap holders and CNC tapping heads accepting a 0.48-inch shank diameter with a 0.36-inch square drive. Compatible with materials including aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel as stated in the manufacturer specifications.

Installation Notes

Installation and use should be performed by qualified machinists or tooling technicians familiar with threading operations. Ensure the workpiece is securely fixtured and the spindle is properly aligned before beginning the tapping cycle to avoid tap breakage or thread damage. This tap does not feature coolant-through capability, so adequate external lubrication or flood coolant should be applied during the operation. Always verify that the tap holder and drive square are properly sized and torqued for the shank before running.
