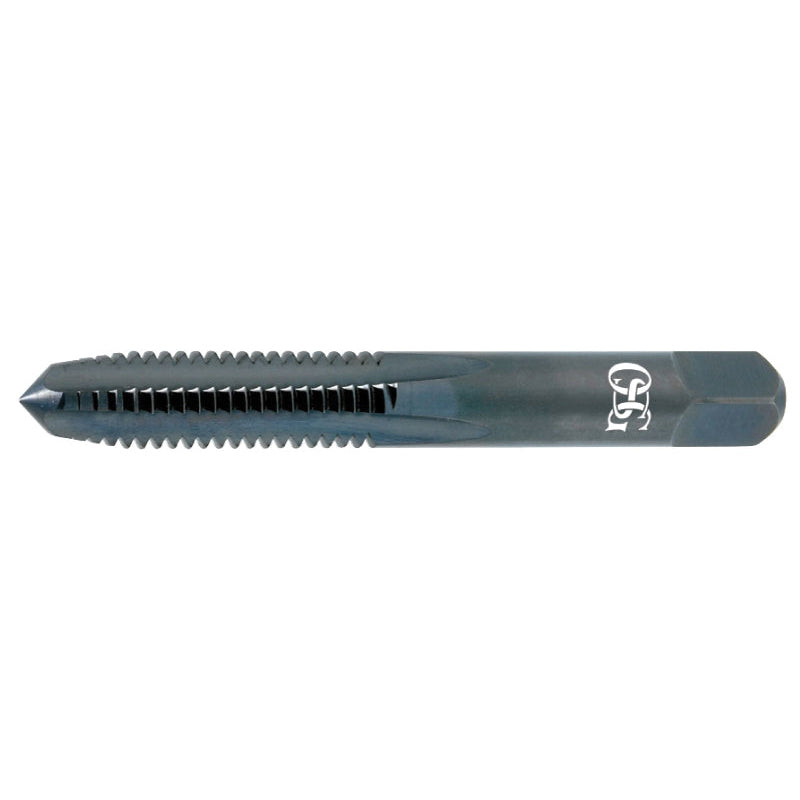

OSG 1123600 101 General Purpose Straight Flute Hand Tap Right Hand Cutting 5/8-11

Product Description

The OSG Straight Flute Hand Tap with MPN 1123600 is designed for general purpose threading. This tap performs efficiently in various applications, including aluminum alloy, cast aluminum, cast iron, carbon steel, and both ferrous and non-ferrous metals.

• HSS material enhances wear resistance.
• Right hand cutting with a 5P taper chamfer.
• Includes four flutes for improved chip removal.

Product Highlights

This tap is built for versatility and durability in threading tasks. Ideal for both blind and through hole applications.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Thread Size: 5/8-11
• Chamfer Type: 5P Taper
• Shank Length: 1-25/32 in
• Thread Limit: H3
• Thread Length: 1.362 in
• Finish/Coating: Bright
• Overall Length: 3.81 in
• Shank Diameter: 0.48 in
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
