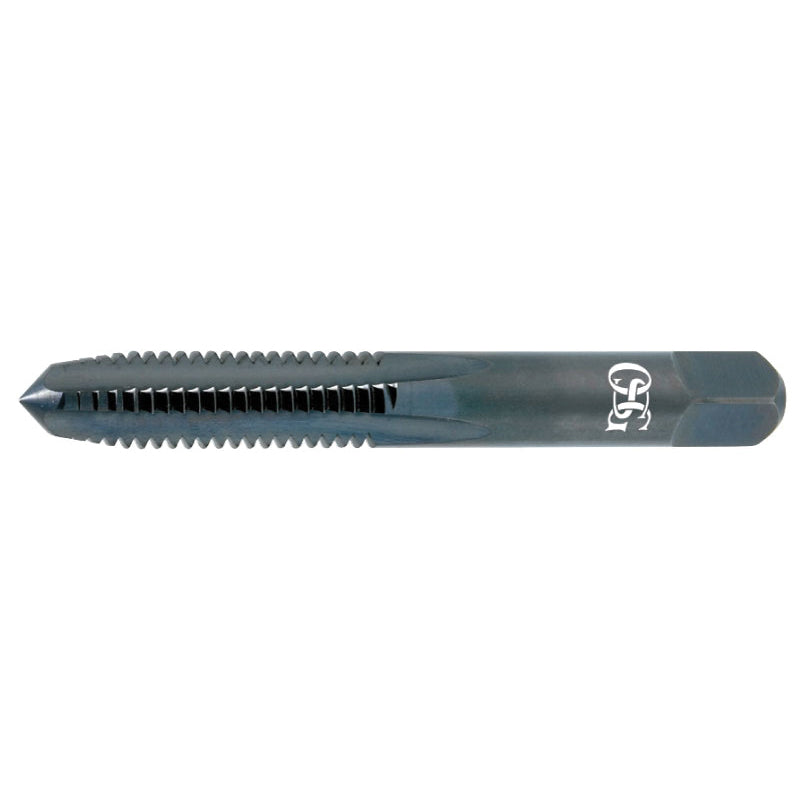

OSG 1122900 101 General Purpose Straight Flute Hand Tap, Right Hand Cutting, 1/2-20 Thread, H3 Thread Limit, 1.5P-2P Bottoming Chamfer

Product Description

The OSG brand offers the 1122900 General Purpose Straight Flute Hand Tap. This tap is designed for right-hand cutting with a thread size of one-half inch by twenty threads per inch. It features a bottoming chamfer with a length of one point five to two pitch and is constructed from high-speed steel (HSS) which provides durability and wear resistance.

• Right hand cutting with a thread size of 1/2-20
• 4 flutes for efficient chip removal
• Applicable for both ferrous and non-ferrous materials

Product Highlights

This tap is ideal for various threading applications. The straight flute design works well for both blind and through hole tasks, providing versatility in usage.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: BR

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Thread Size: 1/2-20
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-17/32 inches
• Thread Limit: H3
• Thread Length: 1.153 inches
• Finish/Coating: Bright
• Overall Length: 3.37 inches
• Shank Diameter: 0.367 inches
• Thread Standard: UNF
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
