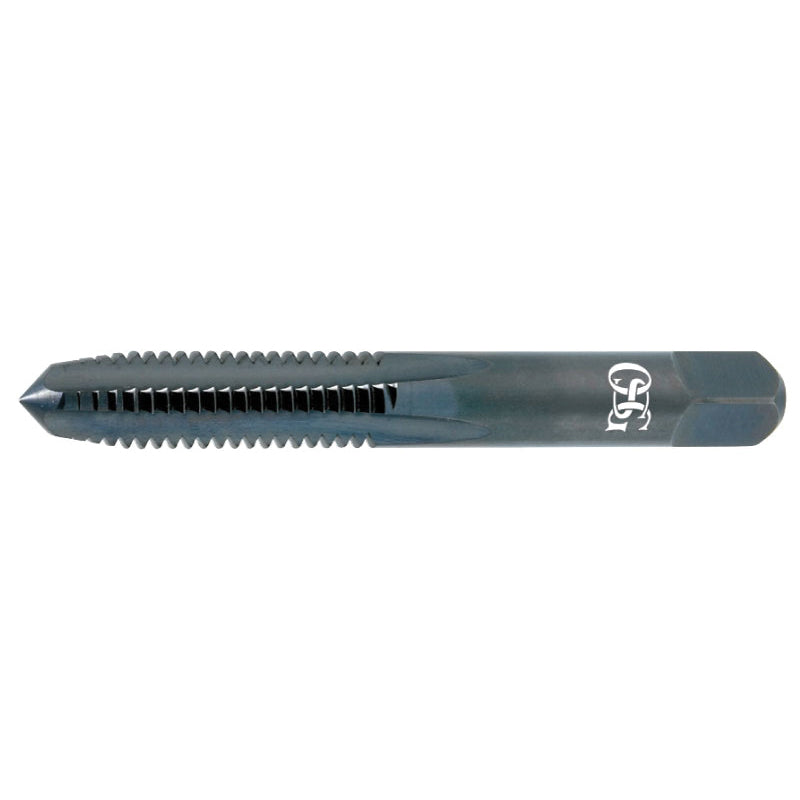

OSG 1122000 101 General Purpose Straight Flute Hand Tap Right Hand Cutting 7/16-14 Thread H3 Thread Limit

Product Description

The OSG Straight Flute Hand Tap with MPN 1122000 is designed for general-purpose threading. This tap features a right-hand cutting direction and is ideal for UNC threads with a size of seven-sixteenths by fourteen. It has a bottoming chamfer type of 1.5P to 2P, making it suitable for blind holes and through holes.

• HSS material for better wear resistance
• Four flute design for improved cutting performance
• Bright finish for enhancing lubrication

Product Highlights

This tap is useful for working with various materials such as aluminum, cast iron, and carbon steel.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Thread Size: 7/16-14
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-7/16 inches
• Thread Limit: H3
• Thread Length: 1.07 inches
• Finish/Coating: Bright
• Overall Length: 3.15 inches
• Shank Diameter: 0.322 inches
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
