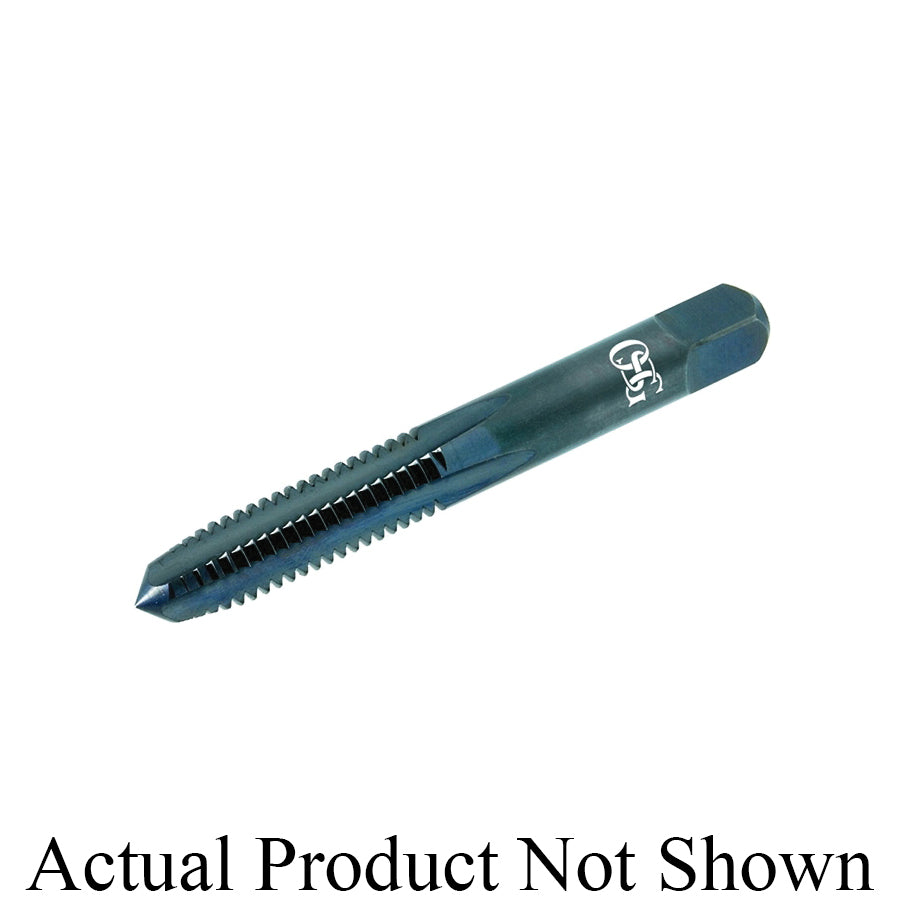

OSG 1121700 General Purpose Straight Flute Hand Tap Right Hand Cutting 3/8-24

Product Description

The OSG 1121700 is a general-purpose straight flute hand tap designed for threading applications. This right-hand cutting tap is suitable for creating threads in both ferrous and non-ferrous metals. It features a thread size of three-eighths inches by twenty-four threads per inch, and it is part of the 101 series.

• HSS material for enhanced wear resistance
• Four flutes for effective chip removal
• Bright finish for improved lubricity

Product Highlights

This tap is ideal for precision applications, including automotive and machinery repair. Its design ensures high-quality threads with minimal cutting force required.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: BR

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Thread Size: 3/8-24
• Chamfer Type: 1.5P-2P Bottoming
• Thread Limit: H3
• Thread Length: 0.937 inches
• Overall Length: 2.93 inches
• Shank Diameter: 0.38 inches
• Thread Standard: UNF
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Ferrous and Non-Ferrous Metals
• Through Coolant: No
