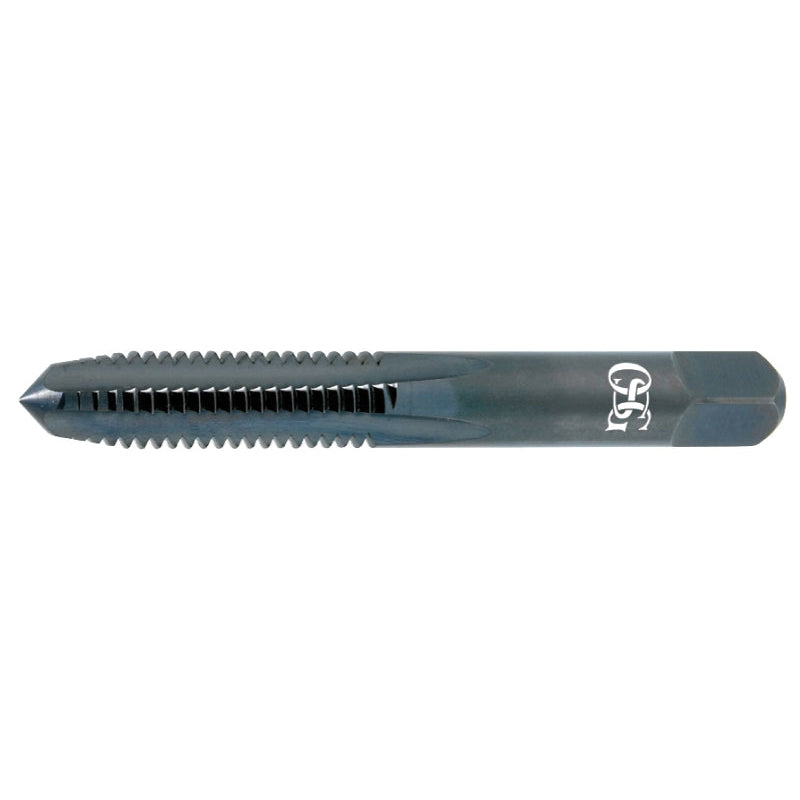

OSG 1121401 101 General Purpose Straight Flute Hand Tap Right Hand Cutting 3/8-16 Thread H3 Thread Limit

Product Description

The OSG Straight Flute Hand Tap, model 1121401, is designed for general purpose threading tasks. This right-hand cutting tap features a three-eighths inch by sixteen thread size and is ideal for a variety of materials including aluminum alloy, cast iron, and carbon steel.

• HSS material for improved wear resistance
• Four flutes for effective chip removal
• Steam oxide coating enhances lubricity

Product Highlights

This tap is suitable for both blind and through hole applications. It is manufactured to UNC standards with an H3 thread limit, ensuring a reliable fit.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: Brazil

Technical Specifications

• Type: General Purpose
• Series: 101
• Thread Size: 3/8-16
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1.5 inches
• Thread Limit: H3
• Thread Length: 0.937 inches
• Finish/Coating: Steam Oxide
• Overall Length: 2.93 inches
• Shank Diameter: 0.38 inches
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
