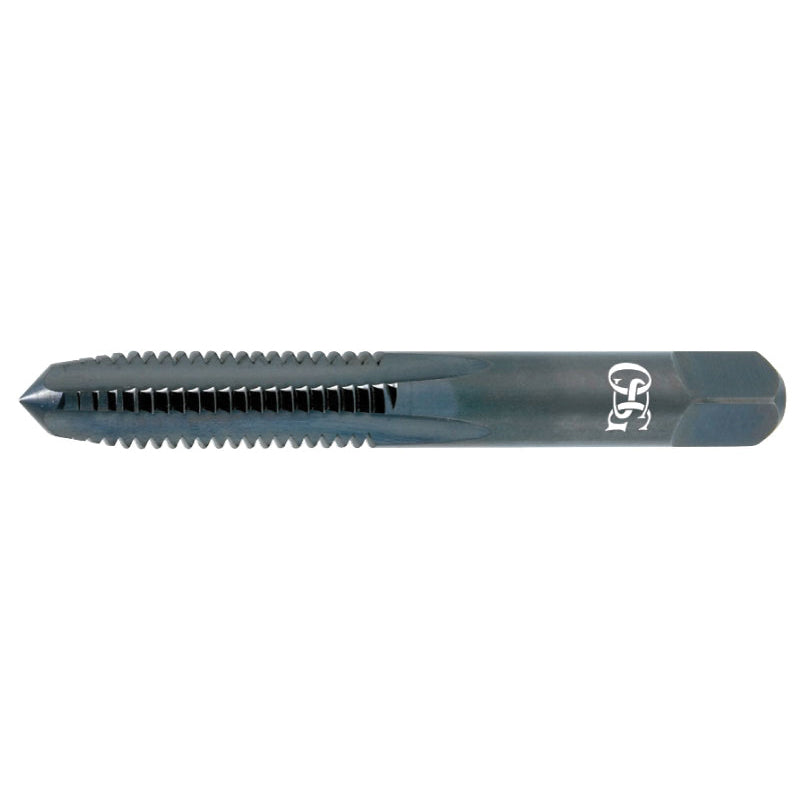

OSG 1121400 101 General Purpose Straight Flute Hand Tap, Right Hand Cutting, 3/8-16 Thread, H3 Thread Limit, 1.5P-2P Bottoming Chamfer

Product Description

The OSG 1121400 is a general purpose straight flute hand tap designed for various threading applications. Made from high-speed steel (HSS), this tap is suitable for use with aluminum alloy, cast aluminum, cast iron, carbon steel, and both ferrous and non-ferrous metals. Its right-hand cutting direction and 3/8-16 thread size make it versatile for both blind and through hole applications.

• Material: HSS for increased wear resistance
• 4 flute design for improved chip removal
• Overall length of 2.93 inches with a thread length of 0.937 inches

Product Highlights

This tap features a bright finish and a 1.5P-2P bottoming chamfer, making it a reliable choice for a variety of industrial tasks. It adheres to REACH, RoHS, and WEEE standards, ensuring safe use in compliant environments.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: BR

Technical Specifications

• Type: General Purpose
• Series: 101
• Thread Size: 3/8-16
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-1/2 in
• Thread Limit: H3
• Thread Length: 0.937 in
• Overall Length: 2.93 in
• Shank Diameter: 0.38 in
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
