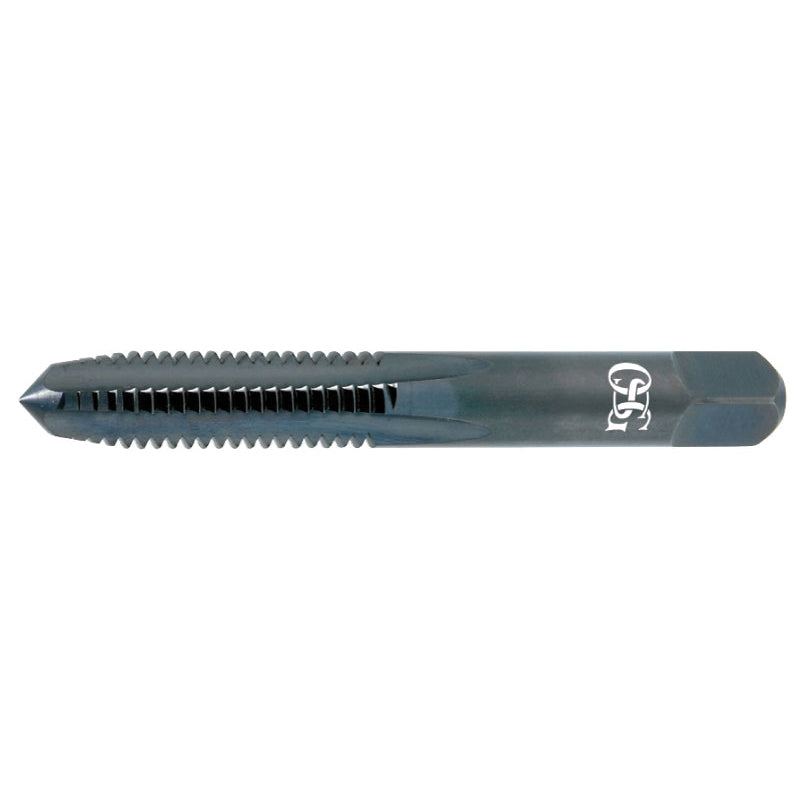

OSG 1121100 101 General Purpose Straight Flute Hand Tap Right Hand Cutting 5/16-24 Thread H3 Thread Limit 1.5P-2P Bottoming Chamfer

Product Description

OSG offers the 1121100, a straight flute hand tap designed for general purpose threading. This tap features a right hand cutting design and is made from high-speed steel (HSS), making it ideal for a variety of materials.

• Thread Size: 5/16-24
• Overall Length: 2.72 inches
• Number of Flutes: 4

Product Highlights

This hand tap is suitable for both blind and through hole applications. It includes a 1.5P-2P bottoming chamfer, which allows for effective threading up to the bottom of the hole.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: BR

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-3/8 inches
• Thread Limit: H3
• Thread Length: 0.834 inches
• Finish/Coating: Bright
• Shank Diameter: 0.317 inches
• Thread Standard: UNF
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
