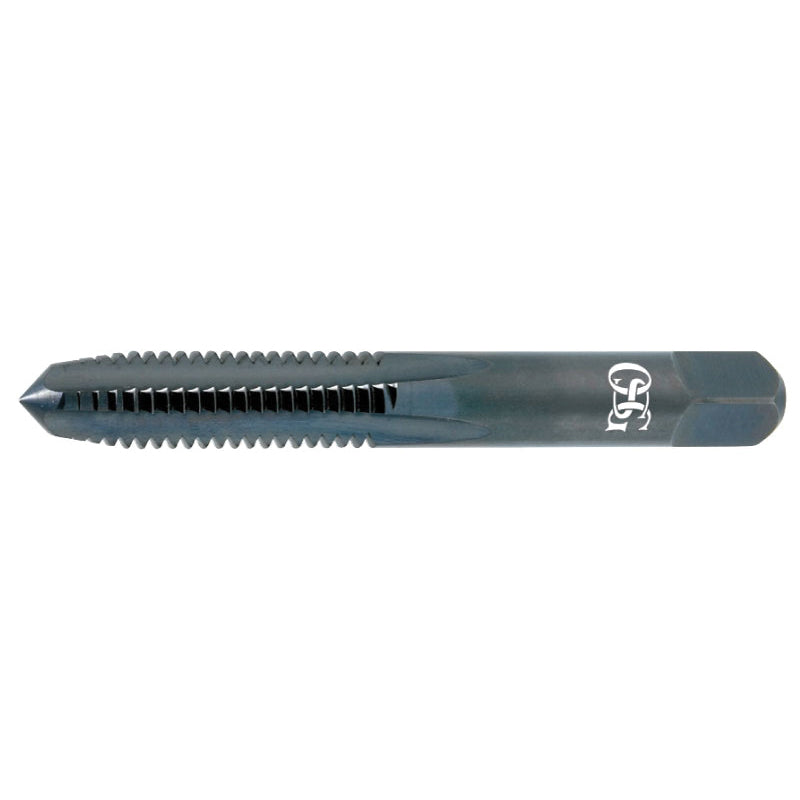

OSG 1120600 101 General Purpose Straight Flute Hand Tap Right Hand Cutting 5/16-18

Product Description

The OSG 1120600 is a straight flute hand tap designed for general purposes. This right-hand cutting tap features a thread size of five-sixteenth inch by eighteen threads per inch. It is constructed from high-speed steel (HSS) for durability and efficiency in various applications.

• Right Hand Cutting
• HSS Material
• For General Threading Applications

Product Highlights

This tap is suitable for threading in materials such as aluminum alloy, cast iron, and carbon steel. With four flutes and a taper chamfer type of five P, it ensures smooth operation and effective chip removal during use.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Thread Size: 5/16-18
• Chamfer Type: 5P Taper
• Shank Length: 1-3/8 inches
• Thread Limit: H3
• Thread Length: 0.834 inches
• Finish/Coating: Bright
• Overall Length: 2.72 inches
• Shank Diameter: 0.317 inches
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
