OSG 1120400 101 General Purpose Straight Flute Hand Tap Right Hand Cutting 1/4-28 Thread H3 Thread Limit

Product Description

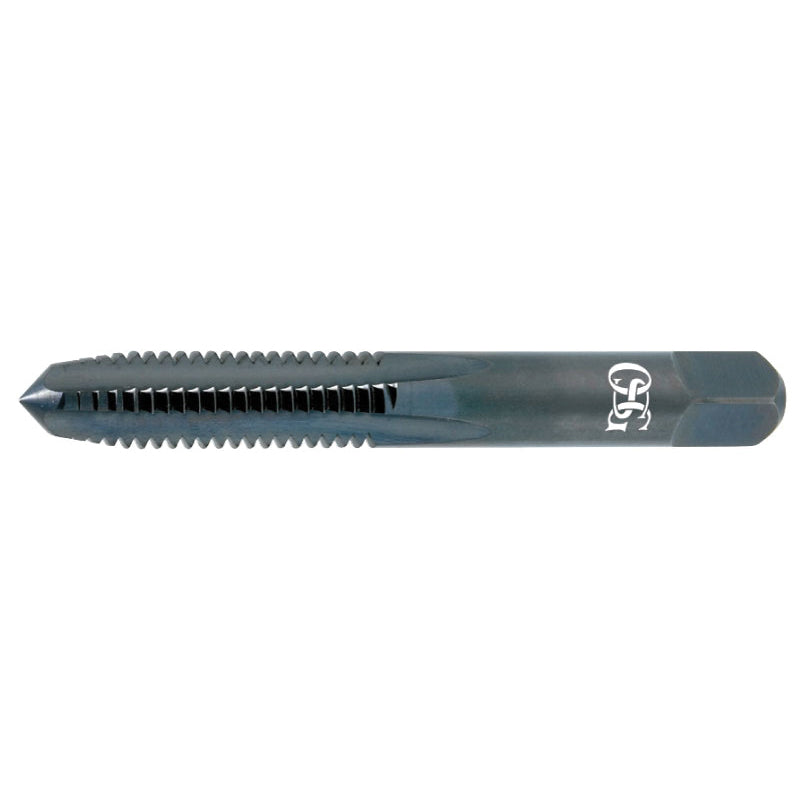

The OSG 1120400 is a straight flute hand tap designed for general purpose threading applications. It features a right hand cutting mechanism and accommodates a thread size of one quarter by twenty eight. This tap is constructed from high-speed steel (HSS) for durability and provides a bright finish.

• Right hand cutting for enhanced threading
• Made from HSS, enhancing wear resistance
• Four flutes, suitable for blind and through hole applications

Product Highlights

The OSG 1120400 tap meets various industry standards and is suitable for a range of materials including aluminum alloy, cast iron, and carbon steel.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Thread Size: 1/4-28
• Chamfer Type: 3.5P-4.5P Plug
• Shank Length: 1-5/16 in
• Thread Limit: H3
• Thread Length: 0.748 in
• Finish/Coating: Bright
• Overall Length: 2-1/2 in
• Shank Diameter: 0.255 in
• Thread Standard: UNF
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
