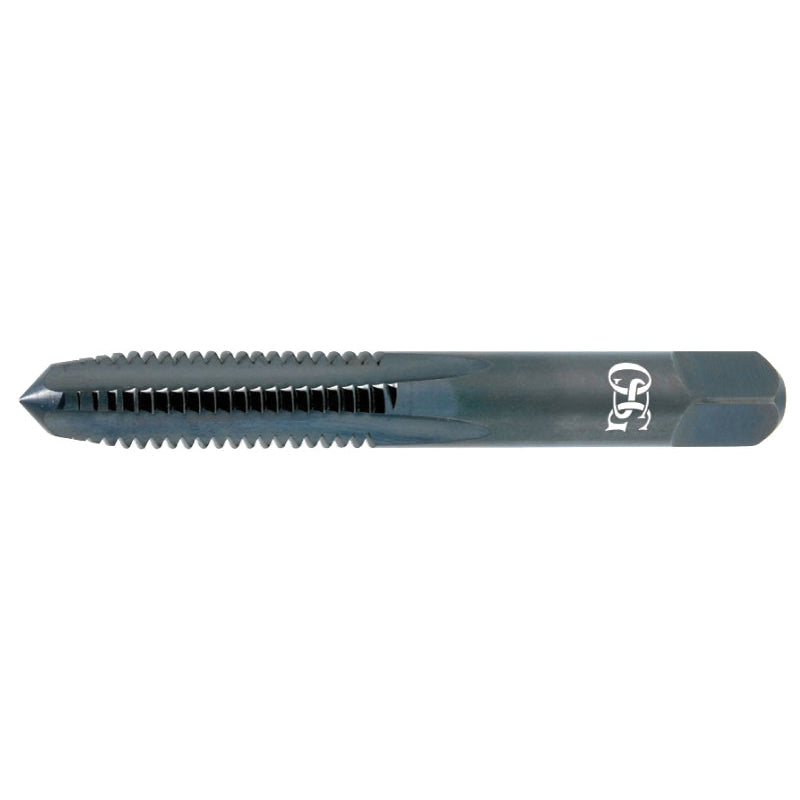

OSG 1120200 101 General Purpose Straight Flute Hand Tap Right Hand Cutting 1/4-20 Thread H3 Thread Limit

Product Description

The OSG Straight Flute Hand Tap, MPN 1120200, is designed for general purpose threading. With a right hand cutting direction and a thread size of one-fourth inch by twenty threads per inch, this tool is ideal for various threading applications. It has four flutes and features a H3 thread limit, ensuring it meets industry standards.

• Made from HSS for durability and wear resistance
• Designed for both blind and through hole applications
• Bright finish enhances lubrication during use

Product Highlights

This hand tap is suitable for use on aluminum alloys, cast aluminum, cast iron, carbon steel, and both ferrous and non-ferrous metals. Its design allows for effective threading in various materials.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 101
• Material: HSS
• Thread Size: 1/4-20
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-5/16 inches
• Thread Limit: H3
• Thread Length: 0.748 inches
• Finish/Coating: Bright
• Overall Length: 2-1/2 inches
• Shank Diameter: 0.255 inches
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant (Yes/No): No
