Osg 1111600 Straight Flute Tap 3/8-24 Unf Plug Hss

Product Description

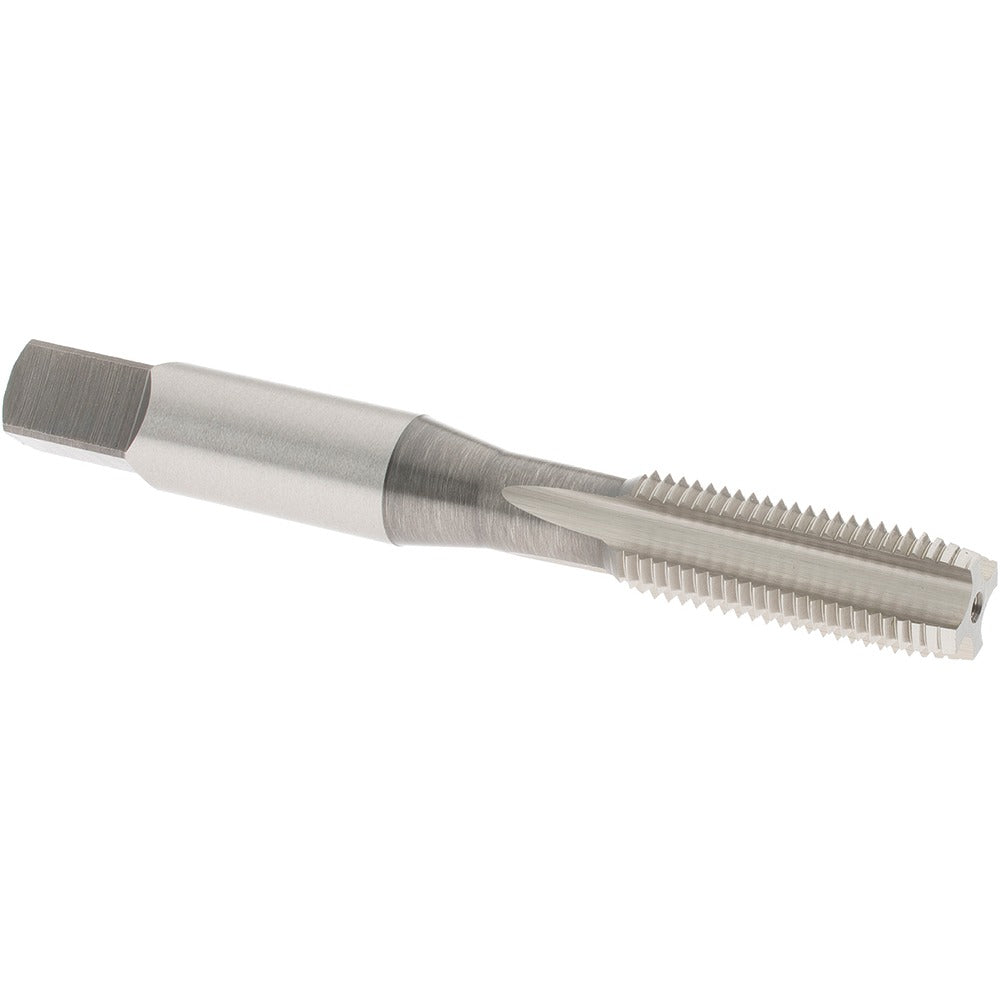

The OSG 1111600 is a straight flute plug tap designed for cutting internal threads in a range of ferrous and non-ferrous materials. Built from high-speed steel with a bright uncoated finish, it cuts 3/8-24 UNF right-hand threads and is suited for through-hole and blind-hole tapping in production and maintenance applications. The plug chamfer style provides a moderate lead-in, making it a versatile choice for most general tapping work. With 4 flutes and an H2 thread limit, this tap delivers consistent thread tolerance across materials including aluminum, cast iron, and low-, medium-, and high-carbon steel. Overall length is 2-15/16 inches with a thread length of 1-1/4 inches.

This tap is intended for use in machine tapping or hand tapping operations where a standard UNF thread form is required. The 3/8-24 UNF specification is common in automotive, mechanical assembly, and general fabrication work. The H2 thread limit makes it appropriate for standard tolerance fits in steel and aluminum components. It is well suited for job shops, maintenance and repair operations, and production environments working across a broad range of workpiece materials including cast aluminum and cast iron.

Key Features

• 3/8-24 UNF right-hand thread form with H2 thread limit for standard tolerance control
• Plug chamfer provides moderate lead-in for versatile use in through and blind holes
• High-speed steel construction for durability across ferrous and non-ferrous materials
• 4 straight flutes for efficient chip formation in short-chipping materials
• Bright uncoated finish suitable for use with standard cutting fluids
• No coolant-through design - compatible with conventional flood or drip lubrication

Compatibility

Rated for tapping aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel. Part of OSG Series 101.

Installation Notes

This tap is installed and operated by machinists, toolmakers, and maintenance technicians using a tap wrench, tapping head, or CNC/manual machine spindle. Always secure the workpiece and ensure the tap is properly aligned before engagement to avoid tap breakage. Apply an appropriate cutting fluid for the workpiece material to extend tap life and improve thread finish. Follow applicable shop safety procedures when handling sharp cutting tools.
