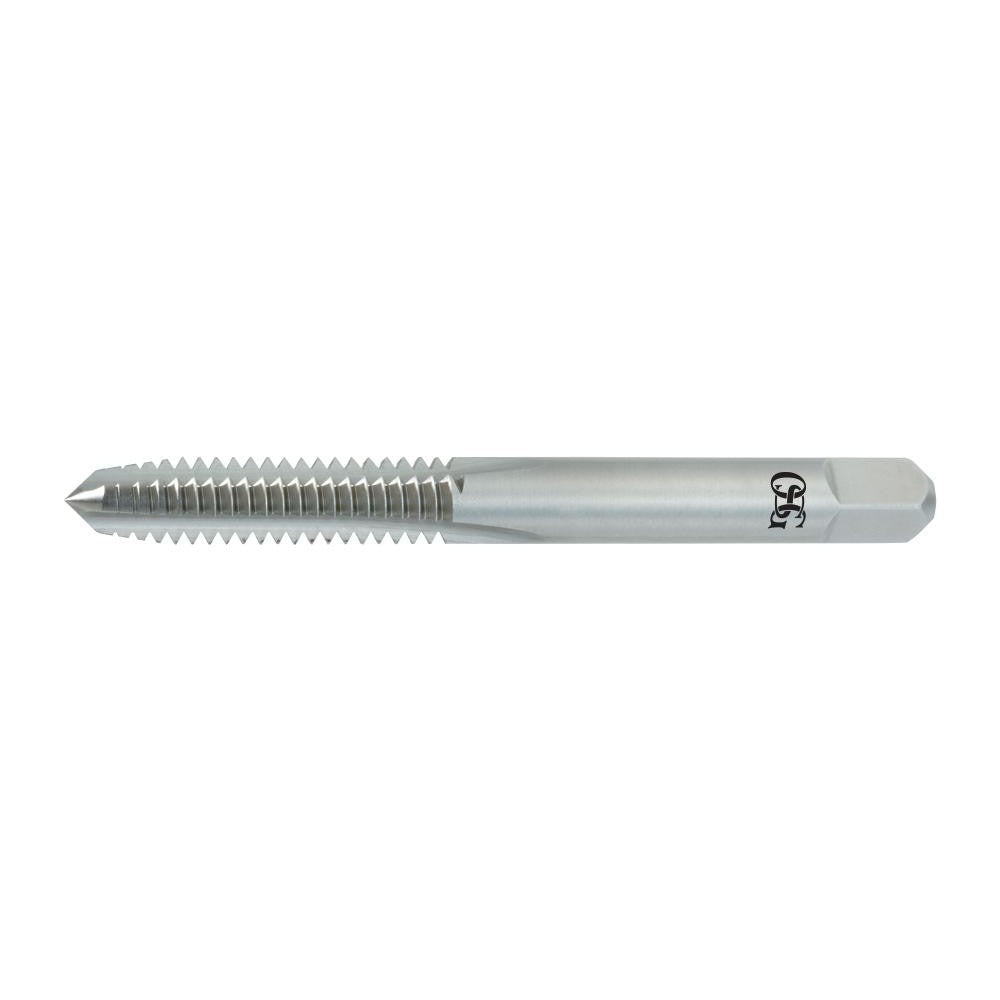

Osg 1072900 Straight Flute Tap 6-32 Unc Bottoming Hss

Product Description

The OSG 1072900 is a straight flute bottoming tap designed to cut 6-32 UNC internal threads in through-holes and blind holes where full thread depth near the bottom is required. Built from high-speed steel with a bright/uncoated finish, it runs 2 flutes in a right-hand configuration with an H3 thread limit, making it well-suited for controlled-tolerance threading operations. The bottoming chamfer engages the workpiece close to the bottom of a blind hole, allowing maximum thread engagement in tight clearance conditions. Overall length is 2 inches with a thread length of 11/16 inches. This tap belongs to OSG Series 104 and is sold individually.

The 1072900 is intended for tapping operations in a range of ferrous and non-ferrous metals. It performs in materials including aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. The 2B class of fit targets standard commercial thread tolerances used across general machining, fabrication, and maintenance repair work. It is commonly used in manual tapping, drill press setups, and CNC tapping cycles where a bottoming tap is the final step after a plug or taper tap has started the thread.

Key Features

• Bottoming chamfer allows threading close to the bottom of blind holes
• High-speed steel construction provides durability across a broad range of workpiece materials
• H3 thread limit supports consistent 2B class of fit tolerances
• 2-flute straight flute design suited for short-chipping and free-machining materials
• Right-hand thread, 6-32 UNC, 32 threads per inch
• Bright/uncoated finish - no coating buildup concerns in sensitive threading applications

Compatibility

Compatible with aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel workpiece materials. Designed as an OEM-style replacement or direct substitute for 6-32 UNC bottoming taps in Series 104 applications requiring a 2B class of fit.

Installation Notes

Bottoming taps should be used as the final tap in a threading sequence, following a plug or taper tap that has already started the thread. Secure the workpiece fully before tapping and apply appropriate cutting fluid for the workpiece material to extend tool life and improve thread finish. When using in a drill press or CNC spindle, verify spindle alignment to avoid tap breakage. Follow OSHA and shop-specific machine guarding requirements when operating tapping equipment.
