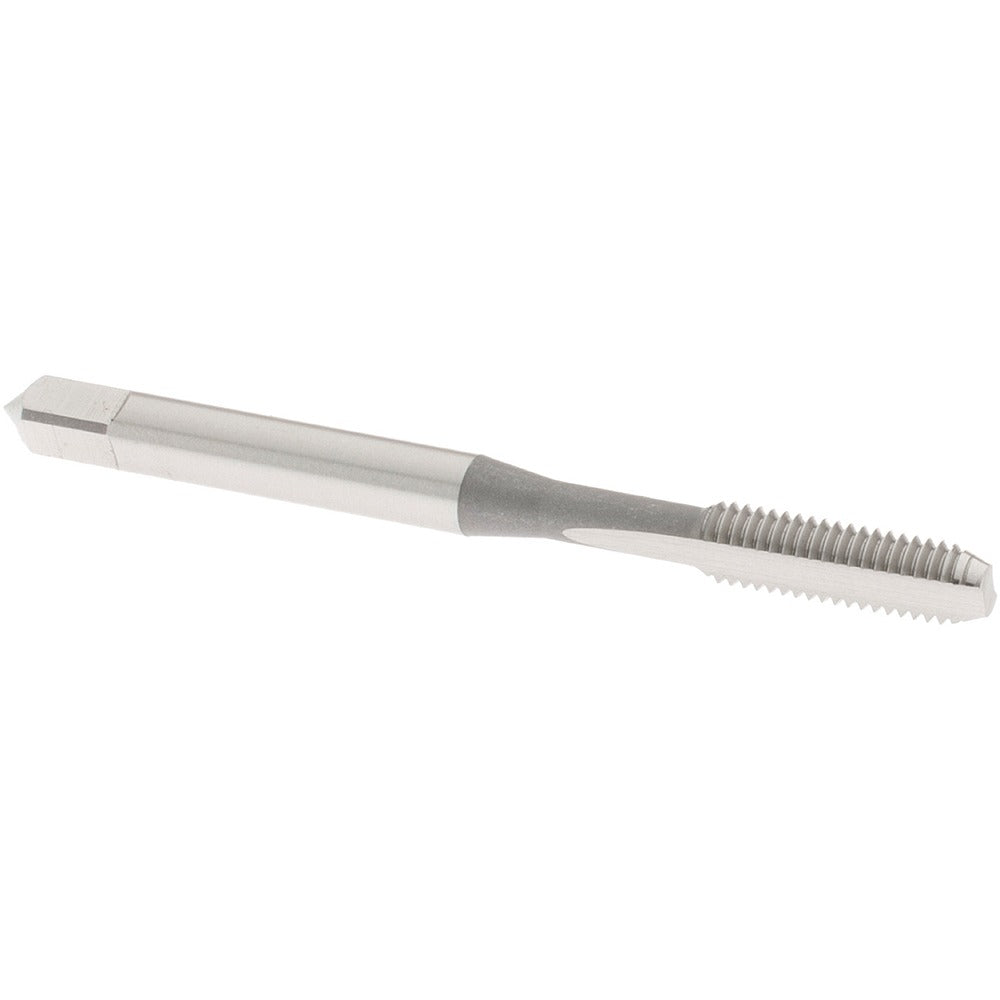

Osg 1069400 Straight Flute Tap 10-32 Unf Bottoming Hss

Product Description

The OSG 1069400 is a straight flute bottoming tap designed for threading operations in a wide range of ferrous and non-ferrous materials. Manufactured from high-speed steel with a bright uncoated finish, this tap cuts a 10-32 UNF right-hand internal thread to a 3B class of fit. The bottoming chamfer configuration allows threading close to the bottom of blind holes where lead-in space is limited. With an overall length of 2.375 inches and a thread length of 0.875 inches, the 1069400 fits standard tap holders and tapping chucks used in machine shop and production environments. Machinists, toolroom technicians, and maintenance trades rely on this geometry for precise, repeatable internal threads.

This tap is suited for use in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. The straight flute design works best in through-hole and shallow blind-hole applications where chip evacuation is manageable. It is appropriate for both CNC tapping operations and manual hand-tapping setups. The H2 thread limit provides controlled oversize tolerance, supporting consistent 3B fit results across production runs. No coolant-through capability is present, so flood or brush-applied cutting fluid is recommended when tapping steel or cast iron.

Key Features

• Bottoming chamfer allows threading to within a few threads of the bottom of a blind hole
• High-speed steel construction provides toughness and wear resistance across a range of workpiece materials
• H2 thread limit ensures controlled tolerance for consistent 3B class of fit
• 2-flute straight design handles through-holes and shallow blind holes with adequate chip clearance
• Right-hand thread direction compatible with standard tapping equipment and hand-tap wrenches
• Bright uncoated finish suitable for general-purpose applications; compatible with most cutting fluids

Compatibility

Designed for use in aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel. Compatible with standard 10-32 UNF tapping applications requiring a 3B class of fit and bottoming chamfer geometry.

Installation Notes

Always secure the workpiece and use a calibrated tap wrench or CNC tapping chuck set to the correct torque range for the material being tapped. Back the tap out periodically to break chips when working in steel or cast iron. Apply an appropriate cutting fluid to extend tool life and improve thread finish. Do not force a bottoming tap into a hole that lacks sufficient drilled depth to accommodate the tap geometry.
