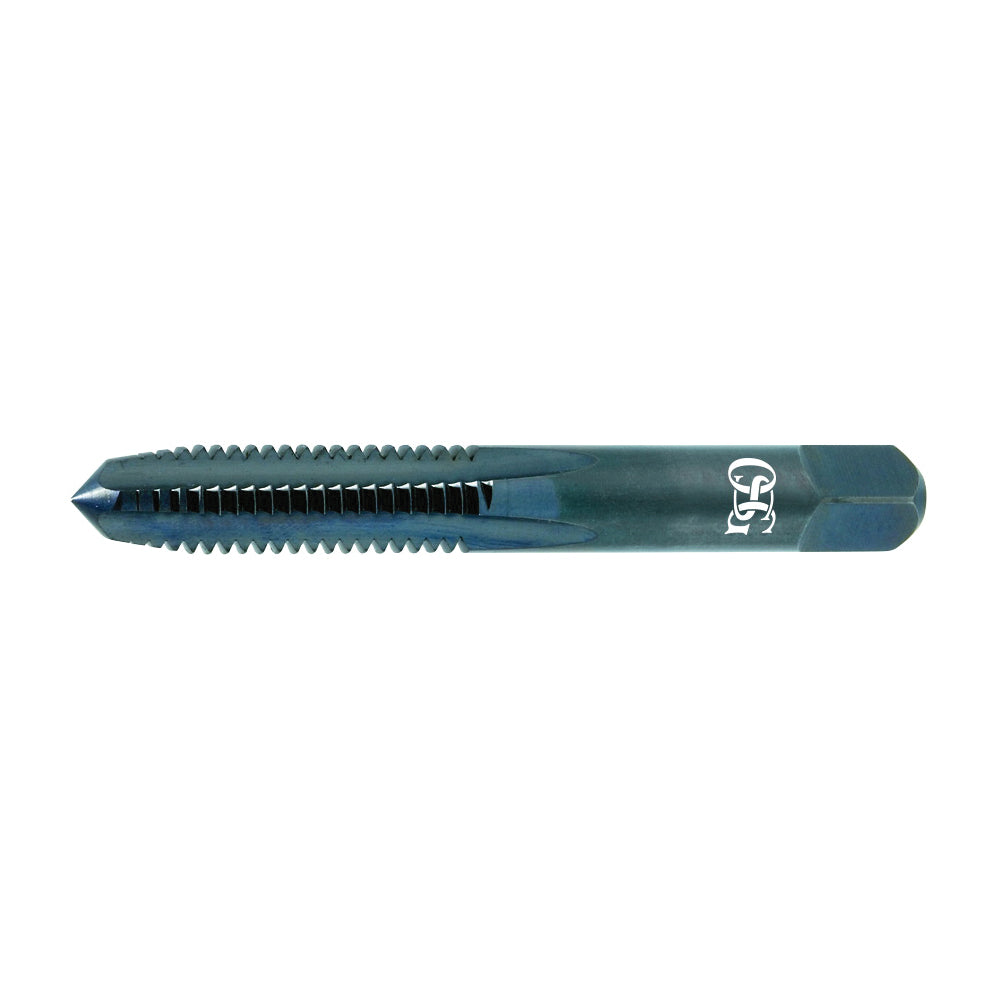

OSG 1025900 General Purpose Straight Flute Hand Tap, Right Hand Cutting, #12-28 Thread, H3 Thread Limit, 1.5P-2P Bottoming Chamfer

Product Description

The OSG 1025900 is a general-purpose straight flute hand tap designed for right-hand cutting. This tap features a thread size of #12-28 and is ideal for various threading applications. The tool is made with high-speed steel (HSS) for durability.

• Right hand cutting for ease of use
• Suitable for aluminum, cast iron, and steel materials
• Four flutes for effective chip removal

Product Highlights

This straight flute tap is designed for precise threading in metal and is suitable for both blind and through holes. It is built to provide reliable performance across various materials.

Product Information

Standard Information

• Measurement System: Imperial
• Country of Origin: MX

Technical Specifications

• Type: General Purpose
• Material: HSS
• Thread Size: #12-28
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-1/4 inches
• Thread Limit: H3
• Thread Length: 0.622 inches
• Overall Length: 2.37 inches
• Shank Diameter: 0.22 inches
• Thread Standard: UNF
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel
• Through Coolant: No
