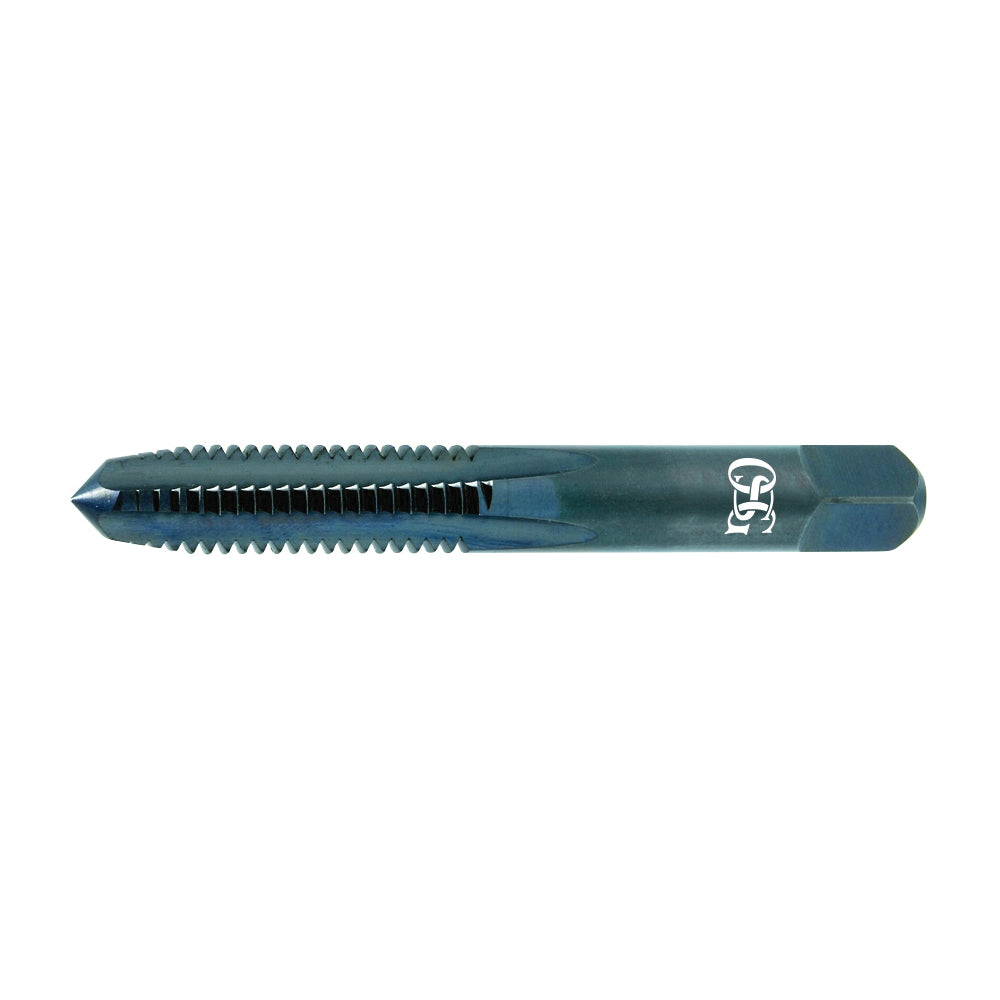

OSG 1025300 General Purpose Straight Flute Hand Tap, Right Hand Cutting, #10-32 Thread, H3 Thread Limit, 1.5P-2P Bottoming Chamfer

Product Description

The OSG 1025300 is a general purpose straight flute hand tap made for threading applications. This product features right hand cutting and is ideal for creating threads in various materials. It is designed for use with #10-32 threads, providing a solid and reliable threading solution.

• HSS material for increased durability.
• Designed for both blind and through hole applications.
• Bright finish for improved lubrication.

Product Highlights

This hand tap is suitable for both ferrous and non-ferrous metals, making it versatile across different projects.

Product Information

Standard Information

• Brand: OSG
• MPN: 1025300

Technical Specifications

• Type: General Purpose
• Series: 102
• Material: HSS
• Thread Size: #10-32
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-5/16 inches
• Thread Limit: H3
• Thread Length: 0.618 inches
• Finish/Coating: Bright
• Overall Length: 2.37 inches
• Shank Diameter: 0.194 inches
• Thread Standard: UNF
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
