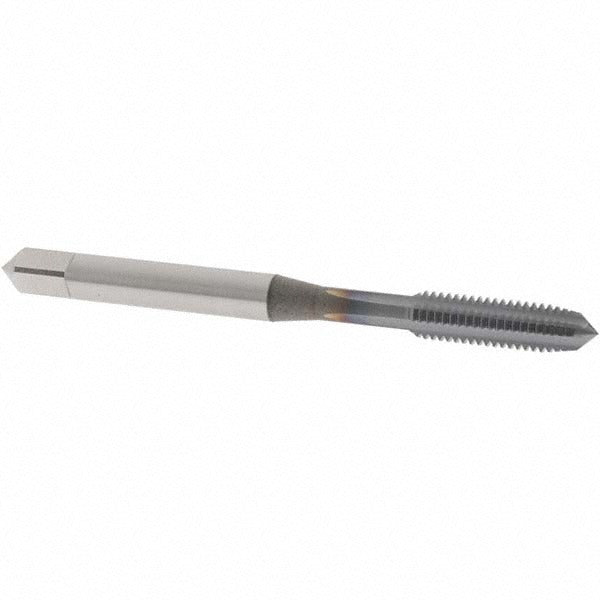

Osg 1025208 Straight Flute Tap 10-32 Unf Ticn Hss

Product Description

The OSG 1025208 is a straight flute tap designed for cutting 10-32 UNF internal threads in a wide range of ferrous and non-ferrous metals. Built from high-speed steel with a titanium carbonitride (TiCN) coating, it delivers improved wear resistance and reduced friction compared to uncoated HSS taps. The plug chamfer distributes cutting load across the first several threads, making it suitable for through-hole applications. With a 2B class of fit and H3 thread limit, the tap produces threads that meet standard tolerance requirements for most general-purpose fastener assemblies. It runs right-hand thread direction and requires no coolant-through capability for typical applications.

This tap is used in machine shop, maintenance, and production environments where 10-32 UNF threads are required. Its straight flute geometry works best in through-hole tapping operations where chips can clear freely from the cutting zone. Stated material applications include aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel, covering a broad range of workpiece materials encountered in general machining, repair, and fabrication work. It is part of the OSG Series 102 tap line.

Key Features

• TiCN coating provides increased surface hardness and lubricity for extended tool life
• High-speed steel construction handles a wide range of ferrous and non-ferrous materials
• Plug chamfer allows gradual thread engagement, ideal for through-hole tapping
• 2B class of fit and H3 thread limit meet standard UNF tolerance requirements
• Straight flute design promotes chip clearance in through-hole applications
• Right-hand thread direction, compatible with standard tapping attachments and tap handles

Compatibility

Designed for use in through-hole tapping of 10-32 UNF threads in aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel workpieces. Part of the OSG Series 102 standard tap line.

Installation Notes

Machinists and maintenance technicians should secure the workpiece firmly and ensure the tap is properly aligned with the pilot hole before beginning the threading operation. Use a suitable tapping fluid or cutting oil appropriate for the workpiece material to reduce heat buildup and extend tap life. Apply consistent, moderate torque and back off periodically to break chips and prevent tap binding. Replace the tap if cutting becomes noticeably harder or thread quality degrades, as a dull tap increases the risk of breakage.
