OSG 1025100 General Purpose Straight Flute Hand Tap Right Hand Cutting #10-32 Thread H3 Thread Limit 5P Taper Chamfer

Product Description

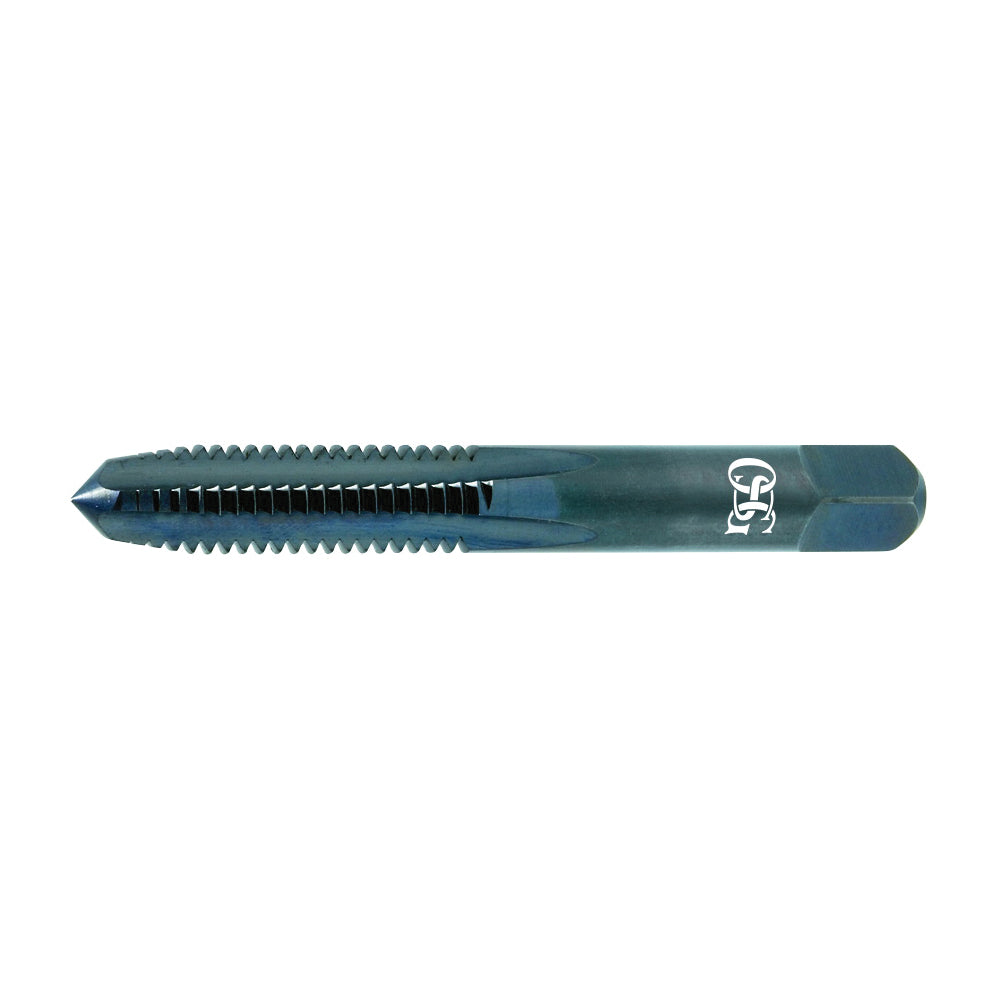

The OSG 1025100 is a general-purpose straight flute hand tap designed for right hand cutting. Its H3 thread limit makes it suitable for threading applications requiring precision and reliability. The tap features a #10-32 thread size and a 5P taper chamfer, allowing for easier entry into the material. With a bright finish, it provides improved mechanical lubricity, enhancing cutting performance.

• HSS material for increased wear resistance
• Four flutes allow for effective chip removal
• Designed for usage in aluminum alloy, cast iron, and carbon steel applications

Product Highlights

This tap is ideal for various materials, providing a reliable solution for general threading tasks.

Product Information

Standard Information

• Country of Origin: MX
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 102
• Material: HSS
• Thread Size: #10-32
• Chamfer Type: 5P Taper
• Shank Length: 1-5/16 in
• Thread Limit: H3
• Thread Length: 0.618 in
• Overall Length: 2.37 in
• Shank Diameter: 0.194 in
• Thread Standard: UNF
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
