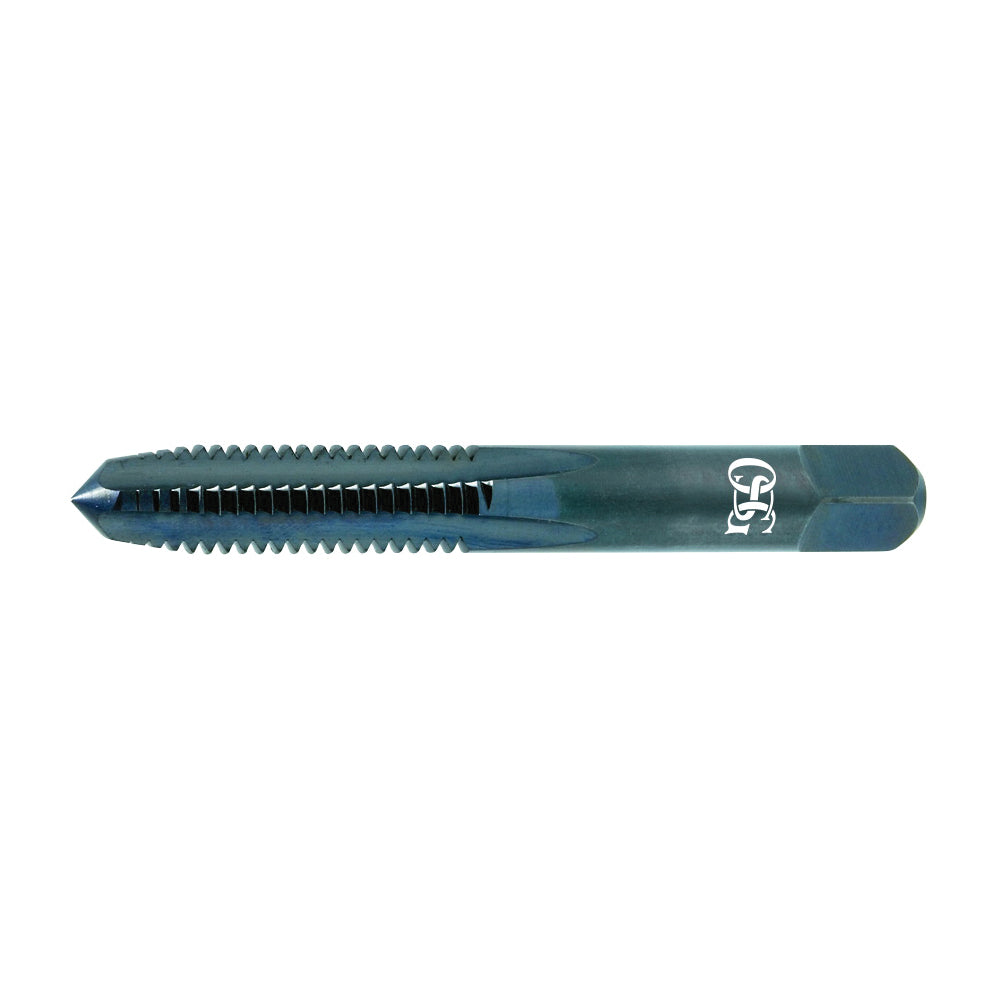

OSG 1025000 General Purpose Straight Flute Hand Tap Right Hand Cutting #10-24 Thread H3 Thread Limit 1.5P-2P Bottoming Chamfer

Product Description

OSG offers the 1025000 General Purpose Straight Flute Hand Tap designed for threading applications. The tap features a #10-24 thread size, H3 thread limit, and a right-hand cutting direction. This product is made from high-speed steel with a bright finish that enhances mechanical lubricity.

• 4 flute design for efficient cutting
• 1.5P-2P bottoming chamfer for optimal performance
• Compatible with various materials including aluminum, cast iron, and carbon steel

Product Highlights

This general-purpose tool is suitable for use in both blind and through hole applications. It is a reliable choice for professional use in metalworking and allows for smooth threading in different materials.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 102
• Material: HSS
• Thread Size: #10-24
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-5/16 in
• Thread Limit: H3
• Thread Length: 0.618 in
• Finish/Coating: Bright
• Overall Length: 2.37 in
• Shank Diameter: 0.194 in
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
