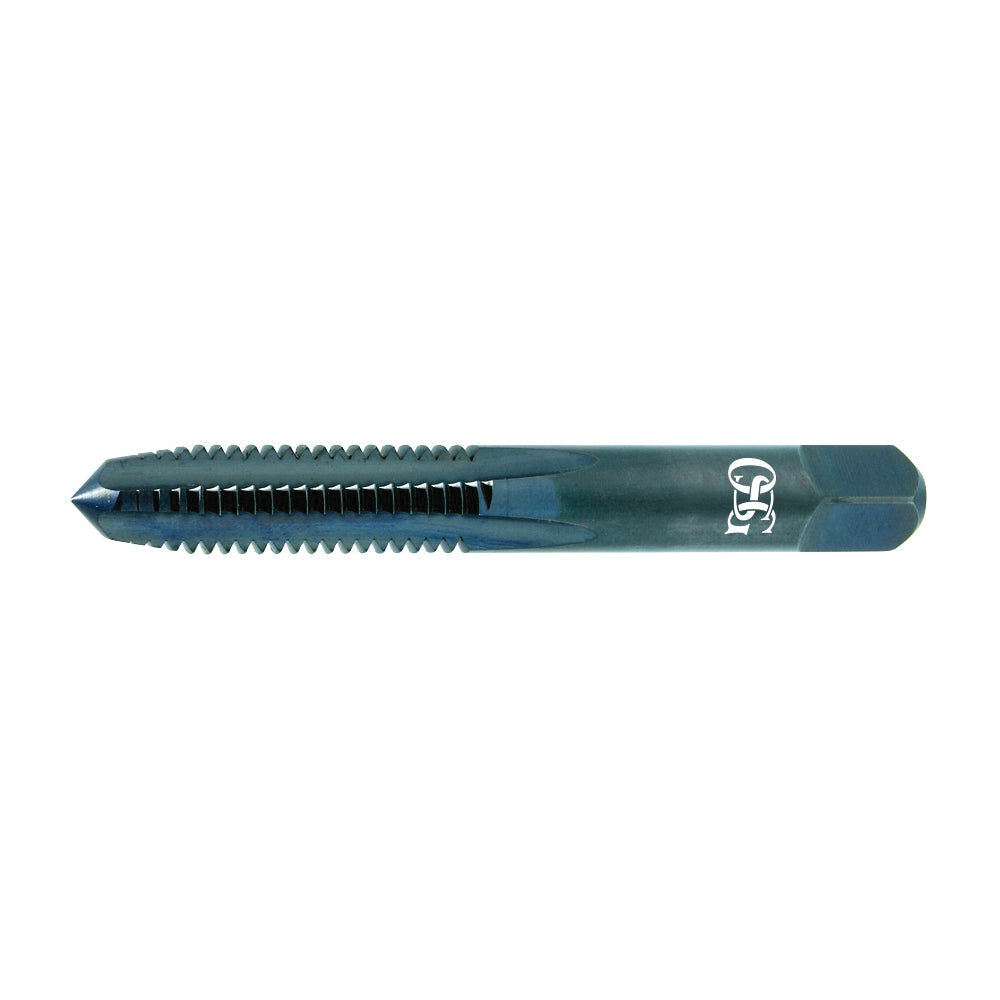

OSG 1024800 General Purpose Straight Flute Hand Tap, Right Hand Cutting, #10-24 Thread, H3 Thread Limit, 5P Taper Chamfer

Product Description

The OSG 1024800 is a general-purpose straight flute hand tap designed for various threading tasks. This tool cuts right-handed threads and features a #10-24 thread specification. It has a taper chamfer, making it suitable for different materials.

• Made of high-speed steel for durability
• Four flute design for efficient chip removal
• Imperial measurement system for compatibility

Product Highlights

This tap is ideal for use in aluminium alloys, cast iron, and steel applications.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Series: 102
• Material: HSS
• Thread Size: #10-24
• Chamfer Type: 5P Taper
• Shank Length: 1-5/16 in
• Thread Limit: H3
• Thread Length: 0.618 in
• Overall Length: 2.37 in
• Shank Diameter: 0.194 in
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
