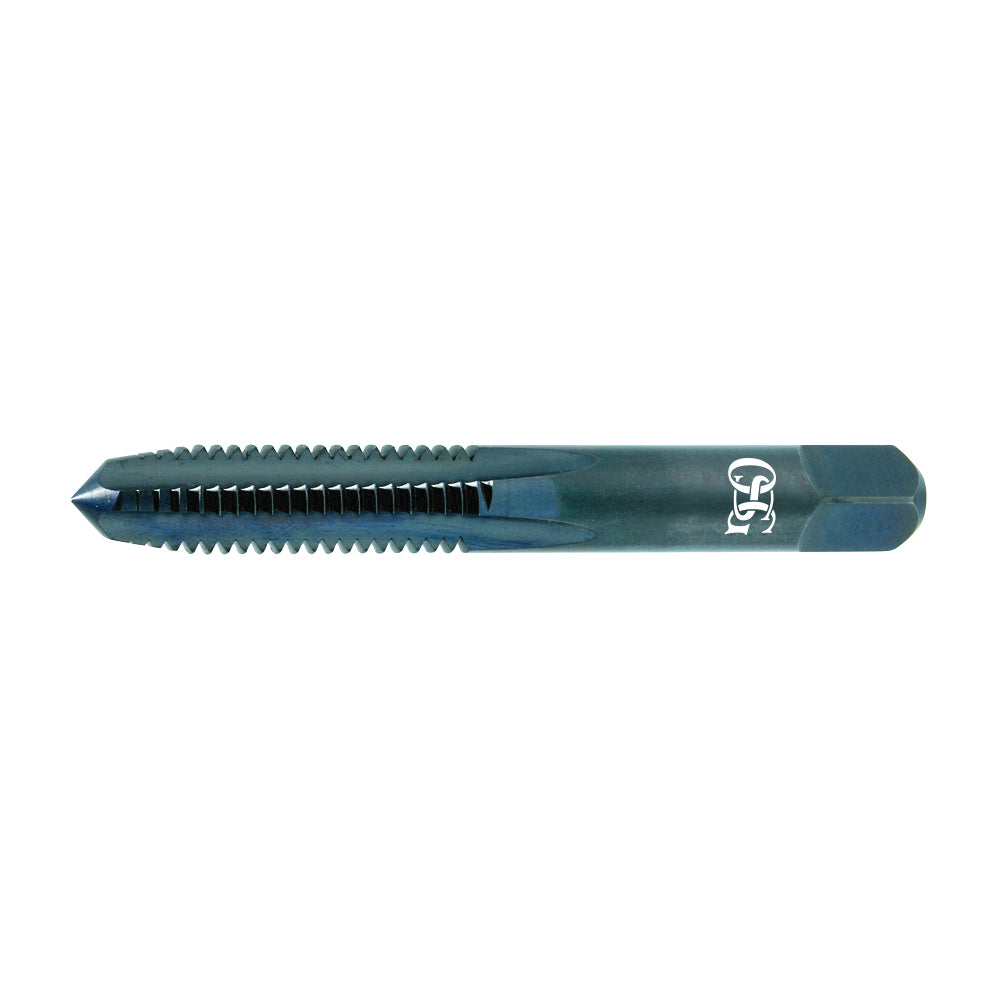

OSG 1024301 General Purpose Straight Flute Hand Tap Right Hand Cutting #8-32 Thread H3 Thread Limit 3.5P-4.5P Plug Chamfer

Product Description

The OSG 1024301 is a general purpose straight flute hand tap designed for right hand cutting. This tap features a #8-32 thread and H3 thread limit. It is suitable for a variety of materials including aluminum alloy, cast aluminum, cast iron, and carbon steel.

• HSS material for increased wear resistance
• Straight flute design for blind and through hole applications
• Steam oxide treatment for enhanced lubricity

Product Highlights

Ideal for general threading applications, the OSG 1024301 tap provides versatility and reliability.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: General Purpose
• Series: 102
• Material: HSS
• Thread Size: #8-32
• Chamfer Type: 3.5P-4.5P Plug
• Shank Length: 1-5/32 in
• Thread Limit: H3
• Thread Length: 0.468 in
• Finish/Coating: Steam Oxide
• Overall Length: 2.12 in
• Shank Diameter: 0.167 in
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant (Yes/No): No
