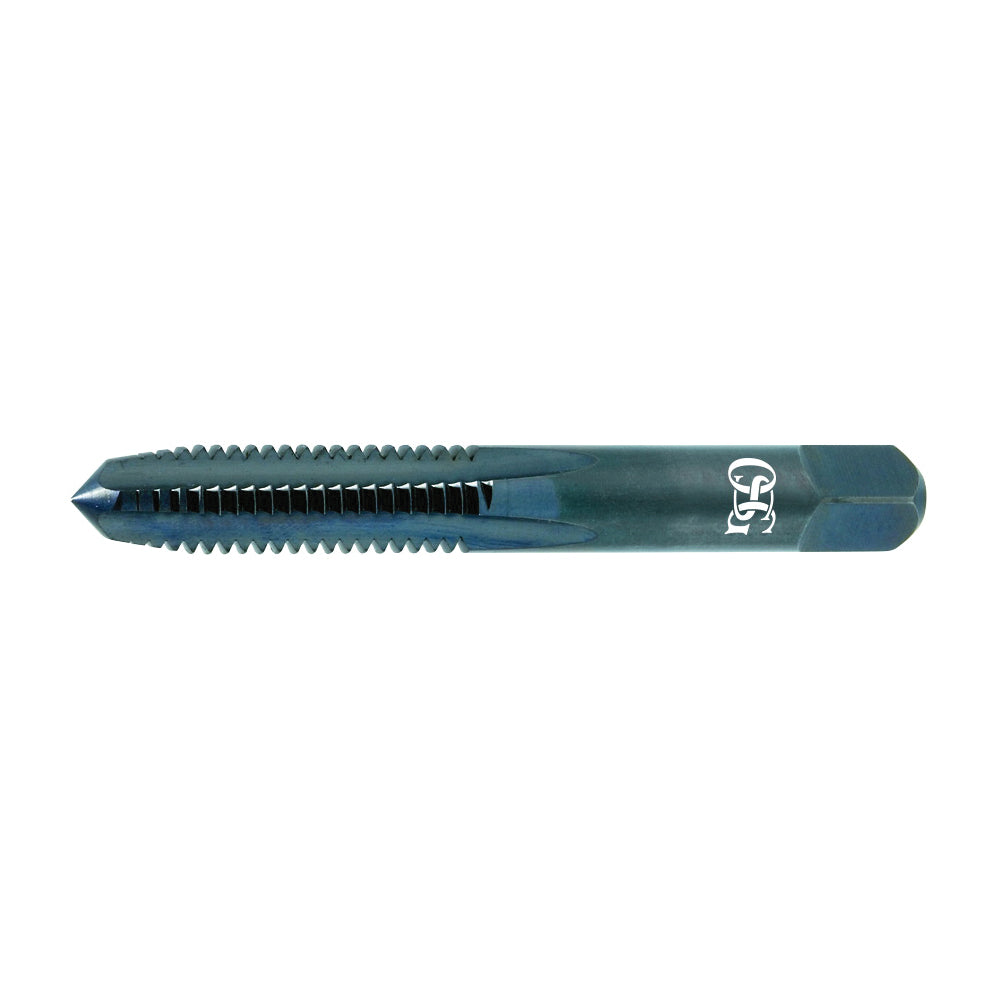

OSG 1024200 General Purpose Straight Flute Hand Tap, Right Hand Cutting, #8-32 Thread, H3 Thread Limit, 5P Taper Chamfer

Product Description

The OSG 1024200 is a general-purpose straight flute hand tap used for threading applications. This right-hand cutting tool is designed for #8-32 threads and features an H3 thread limit. The tap has a 5P taper chamfer and four flutes, making it suitable for various materials. The bright finish enhances lubricity, and its HSS construction increases wear resistance.

• Material: HSS for durability
• Designed for both blind and through-hole applications
• Measurement system: Imperial

Product Highlights

The OSG 1024200 delivers high performance for a range of threading tasks, ideal for use in aluminum alloys, cast aluminum, cast iron, and carbon steel.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Type: General Purpose
• Series: 102
• Thread Size: #8-32
• Chamfer Type: 5P Taper
• Shank Length: 1-5/32 in
• Thread Limit: H3
• Thread Length: 0.468 in
• Finish/Coating: Bright
• Overall Length: 2.12 in
• Shank Diameter: 0.167 in
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
