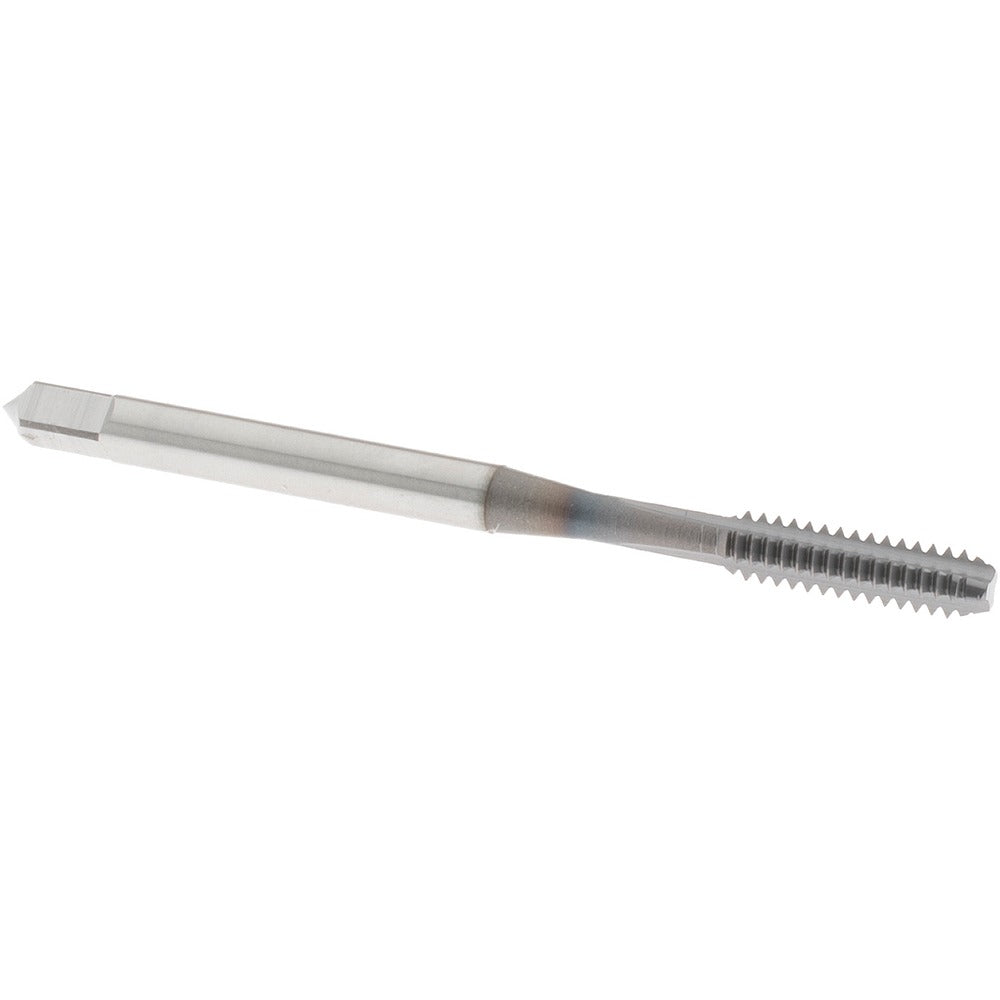

Osg 1023808 Straight Flute Tap 6-32 Unc Bottoming Hss Ticn

Product Description

The OSG 1023808 is a straight flute bottoming tap designed for threading 6-32 UNC holes in a wide range of metals. It is manufactured from high-speed steel with a titanium carbonitride (TiCN) coating that improves wear resistance and extends tool life in production tapping applications. The tap has a 2-inch overall length and an 11/16-inch thread length, with a right-hand thread direction and H3 thread limit. Three flutes provide chip clearance in through and blind hole applications. Class of fit is 2B, which meets standard UNC fastener tolerances. Machinists and maintenance technicians use this tap with a tap handle, T-handle, or machine tapping setup.

This tap is suited for blind-hole and bottom-tapping work where the thread must extend close to the bottom of the hole. The bottoming chamfer — typically 1 to 2 thread lead — allows threading to the bottom of a drilled hole after a taper or plug tap has started the thread. Compatible material applications include aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel. It is used in machine shops, maintenance and repair operations, and production line settings where a clean 6-32 UNC thread is required.

Key Features

• Bottoming chamfer allows threading to the bottom of blind holes
• TiCN coating provides increased surface hardness and reduced friction for extended tool life
• High-speed steel construction handles a broad range of ferrous and non-ferrous materials
• H3 thread limit ensures consistent 2B class of fit in production tapping
• Three straight flutes aid chip evacuation in short-chipping materials
• Right-hand thread direction compatible with standard tapping equipment

Compatibility

Designed for cutting 6-32 UNC right-hand threads in aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel workpieces. Part of OSG Series 102.

Installation Notes

Installation is performed by qualified machinists or maintenance technicians using a tap wrench, T-handle, or CNC/manual tapping machine. Ensure the workpiece is securely fixtured and the pilot hole is drilled to the correct tap drill diameter for a 6-32 UNC thread before tapping. Apply appropriate cutting fluid for the material being tapped to reduce heat and extend tool life. When using as a bottoming tap, first start the thread with a taper or plug tap, then finish with this tap to reach full thread depth.
