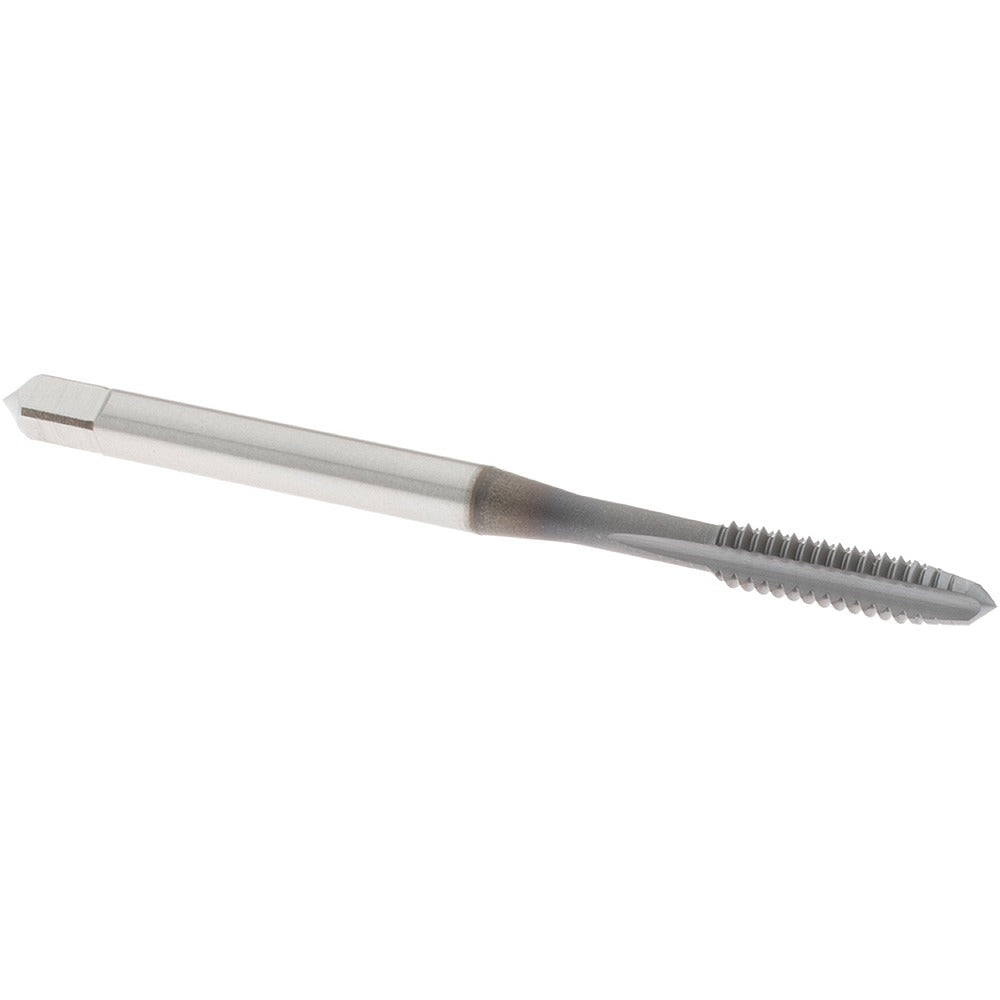

Osg 1023708 Straight Flute Tap 6-32 Unc Ticn Hss

Product Description

The OSG 1023708 is a straight flute tap designed for cutting internal threads in a wide range of ferrous and non-ferrous materials. Built from high-speed steel (HSS) with a titanium carbonitride (TiCN) coating, it produces 6-32 UNC threads with a plug chamfer and a 2B class of fit. The plug chamfer eases thread starting in through-holes and blind holes with adequate depth. The three-flute design provides good chip clearance at moderate cutting speeds. Overall length is 2 inches, with a thread length of 11/16 inches and an H3 thread limit for consistent tolerance control. This tap is well-suited to production tapping operations where dimensional repeatability is required.

This tap is used in machine shops, maintenance facilities, and production environments for tapping 6-32 UNC threads in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. It is part of the OSG Series 102 standard tap line. The right-hand thread direction is standard for most general-purpose tapping applications. Typical installations include tapping threaded holes in panels, enclosures, brackets, and mechanical assemblies that require 6-32 fasteners.

Key Features

• 6-32 UNC thread form with 32 threads per inch and right-hand thread direction
• TiCN coating improves surface hardness and wear resistance compared to uncoated HSS taps
• Plug chamfer suits both through-hole and sufficiently deep blind-hole applications
• H3 thread limit provides consistent 2B class of fit across production runs
• Three straight flutes facilitate chip evacuation in short-chipping materials
• No coolant-through feature; external coolant or cutting fluid application is standard practice

Compatibility

Designed for tapping 6-32 UNC threads in aluminum, cast aluminum, cast iron, high-carbon steel, low-carbon steel, and medium-carbon steel workpieces. Part of the OSG Series 102 straight flute tap line.

Installation Notes

Install in a tapping head, CNC machine spindle, or hand tap wrench appropriate for the shank diameter of 0.141 inches. Power down or lock out any machine before changing tooling. Apply a suitable cutting fluid or tapping compound for the workpiece material to extend tool life and improve thread finish. Do not force the tap if resistance increases unexpectedly, as HSS taps can fracture under excessive torque or misalignment.
