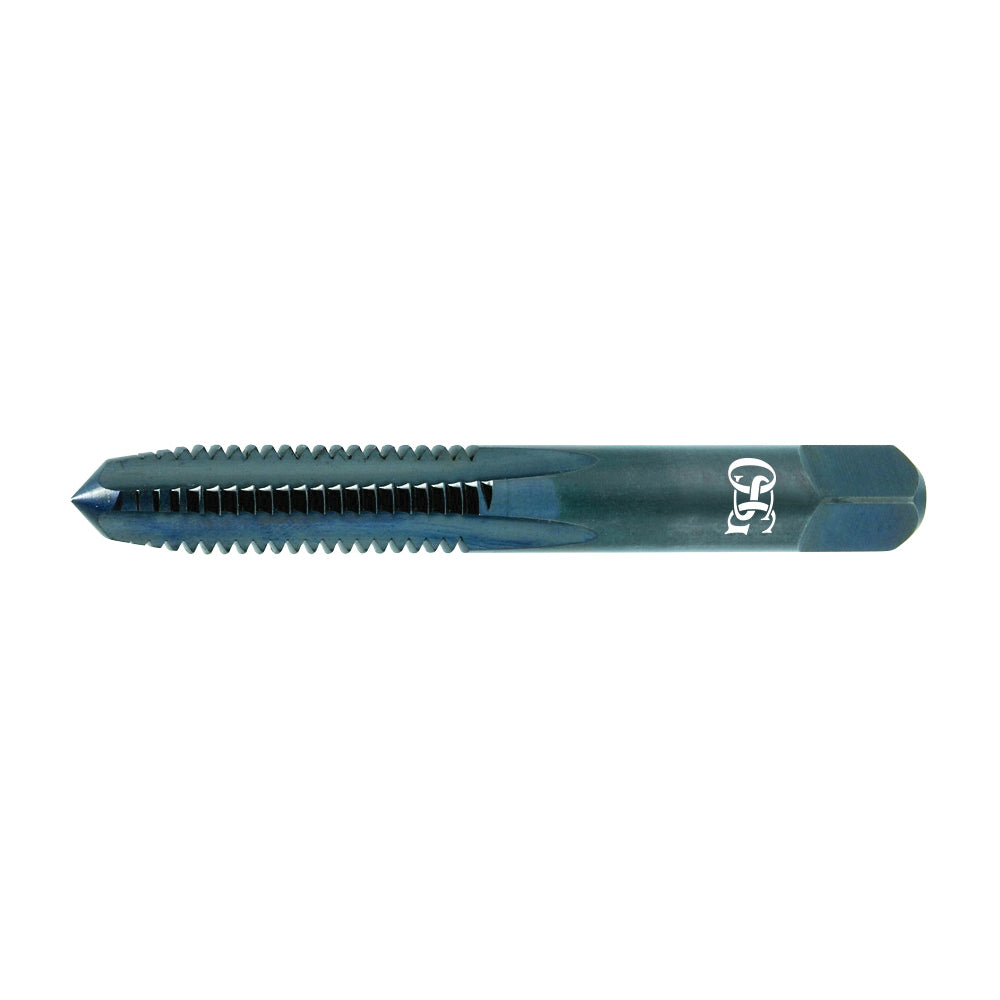

OSG 1023600 General Purpose Straight Flute Hand Tap Right Hand Cutting #6-32 Thread H3 Thread Limit 5P Taper Chamfer

Product Description

OSG Straight Flute Hand Tap, MPN 1023600, is designed for general threading applications. This tap features a right-hand cutting direction and a thread size of #6-32. It is part of the H3 thread limit series and has a 5P taper chamfer design.

• Made from high-speed steel (HSS) for enhanced wear resistance.
• Equipped with three flutes for improved chip removal.
• Suitable for tapping both ferrous and non-ferrous materials.

Product Highlights

This straight flute tap is ideal for creating threads in various metal types, including aluminum and carbon steel. It is suitable for both blind and through hole applications.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Series: 102
• Material: HSS
• Thread Size: #6-32
• Chamfer Type: 5P Taper
• Shank Length: 1-3/16 in
• Thread Length: 0.464 in
• Overall Length: 2 in
• Shank Diameter: 0.14 in
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel
• Through Coolant: No
