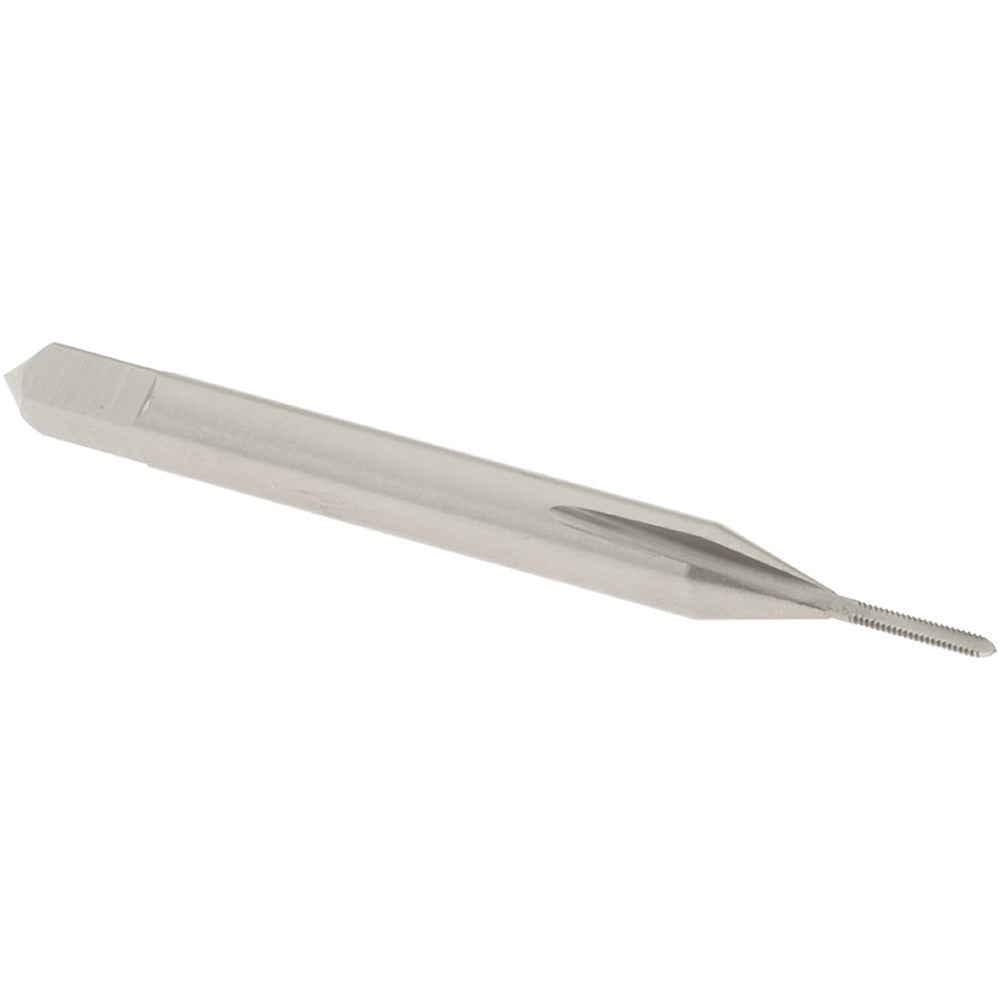

Osg 1020000 Straight Flute Tap 000-120 Unc Bottoming Hss

Product Description

The OSG 1020000 is a straight flute bottoming tap designed to cut internal threads in pre-drilled holes where full thread depth is required close to the bottom of a blind hole. Manufactured from high-speed steel with a bright/uncoated finish, this tap runs a 000-120 UNC thread form with 2 flutes in a right-hand direction. The H1 thread limit holds tight tolerances suitable for precision thread work. Overall length is 1.5 inches with a thread length of 0.19 inches, making it appropriate for miniature and micro-thread applications. Licensed machinists and tool and die technicians are the primary users of this tap.

This tap is suited for threading operations in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. The bottoming chamfer design allows thread cutting to begin within 1 to 2 threads of the bottom of a blind hole, making it the correct choice when full-depth threads are required with minimal clearance. It fits standard tap holders and is part of the OSG S110 series of miniature straight flute taps.

Key Features

• Bottoming chamfer for threading close to the bottom of blind holes
• 000-120 UNC thread form for miniature and micro-fastener applications
• High-speed steel construction provides durability across a range of ferrous and non-ferrous materials
• H1 thread limit for controlled tolerance threading
• Right-hand thread direction, 2 flutes for chip clearance in short-thread applications
• Bright/uncoated finish suitable for general-purpose threading operations

Compatibility

Designed as an OEM-style replacement and standard production tap for miniature 000-120 UNC threading applications. Compatible with aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel workpiece materials per OSG S110 series specifications.

Installation Notes

Install in a standard tap wrench or appropriate CNC tap holder rated for miniature taps. Ensure the workpiece is securely fixtured before tapping to prevent tool breakage at this thread size. Apply cutting fluid appropriate for the workpiece material to extend tool life and improve thread quality. Do not force the tap if resistance increases unexpectedly - back out and clear chips before continuing.
