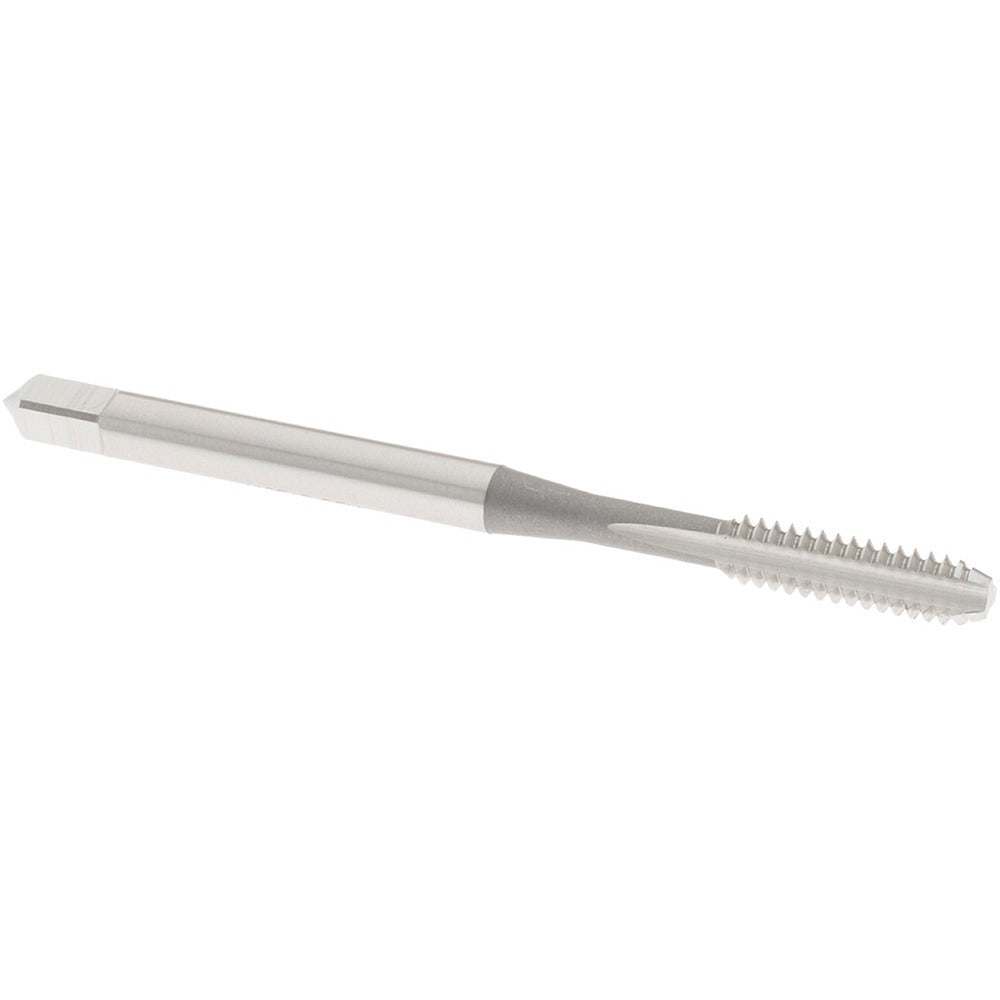

Osg 1013800 Straight Flute Tap 6-32 Unc Bottoming Hss

Product Description

The OSG 1013800 is a straight flute bottoming tap designed for threading 6-32 UNC holes in a wide range of ferrous and non-ferrous metals. Built from high-speed steel (HSS) with a bright, uncoated finish, it produces right-hand internal threads to a 3B class of fit with an H2 thread limit. The three-flute straight flute geometry provides good chip control in through and blind hole applications. Overall length is 2 inches with a thread length of 11/16 inches, making it suited for shallow to moderate thread depths. Licensed machinists, toolmakers, and maintenance technicians use this tap in manual tap wrenches and CNC tapping heads alike.

This tap is intended for tapping 6-32 UNC threads in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. The bottoming chamfer style allows threads to be cut close to the bottom of a blind hole, making it a common choice in precision machining, fixture fabrication, and general maintenance and repair operations. It belongs to OSG Series 102 and is sold individually.

Key Features

• Bottoming chamfer cuts threads close to the bottom of blind holes
• 3 straight flutes provide chip clearance in through and short blind holes
• High-speed steel construction handles a broad range of workpiece materials
• Bright, uncoated finish suitable for use with cutting oils and standard tapping fluids
• H2 thread limit and 3B class of fit deliver standard commercial thread tolerances
• Right-hand thread direction, compatible with standard tap wrenches and holders

Compatibility

Designed as an OEM-style 6-32 UNC bottoming tap for use in standard straight flute tap holders, T-handle tap wrenches, and compatible CNC tapping chucks sized for the 0.141-inch shank diameter.

Installation Notes

This tap is installed by licensed machinists or skilled technicians following standard tapping procedures. Always use the correct drill size for a 6-32 UNC thread and apply an appropriate cutting fluid before tapping to prevent galling and extend tool life. Ensure the workpiece is securely fixtured and the tap is aligned perpendicular to the hole to avoid tap breakage. Do not force the tap; back off periodically to break chips when tapping steel.
