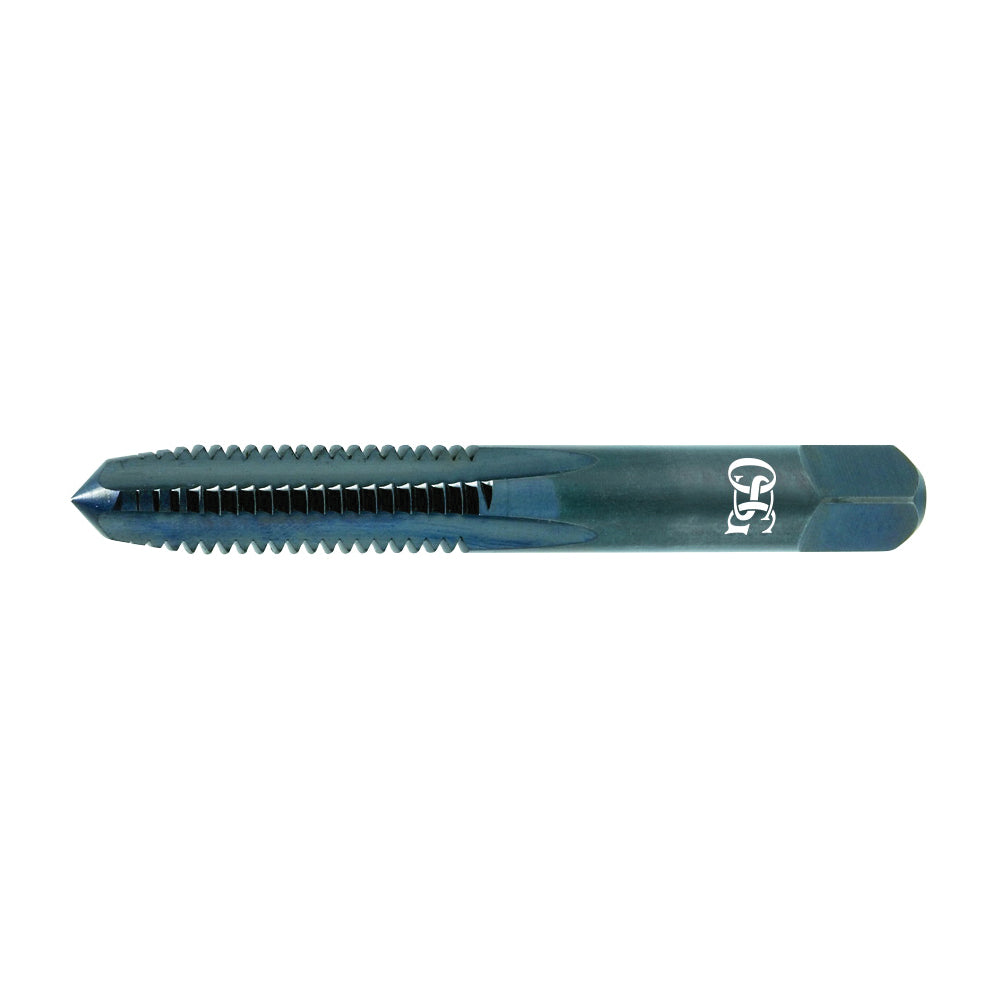

OSG 1013400 102 General Purpose Straight Flute Hand Tap, Right Hand Cutting, #5-44 Thread, H2 Thread Limit, 3.5P-4.5P Plug Chamfer

Product Description

The OSG 1013400 is a straight flute hand tap designed for general purpose threading applications. This tap features a right-hand cutting design with a #5-44 thread size and H2 thread limit. It is made from high-speed steel (HSS) which enhances wear resistance and durability.

• Material: HSS for wear resistance
• Thread Size: #5-44, ideal for various applications
• Right Hand Cutting with three flutes for smooth operation

Product Highlights

This tap is suitable for use in aluminum alloy, cast aluminum, cast iron, carbon steel, and both ferrous and non-ferrous metals.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG1013400

Technical Specifications

• Type: General Purpose
• Series: 102
• Material: HSS
• Thread Size: #5-44
• Chamfer Type: 3.5P-4.5P Plug
• Shank Length: 1-5/32 in
• Thread Limit: H2
• Thread Length: 0.374 in
• Finish/Coating: Bright
• Overall Length: 1.93 in
• Shank Diameter: 0.14 in
• Thread Standard: UNF
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
