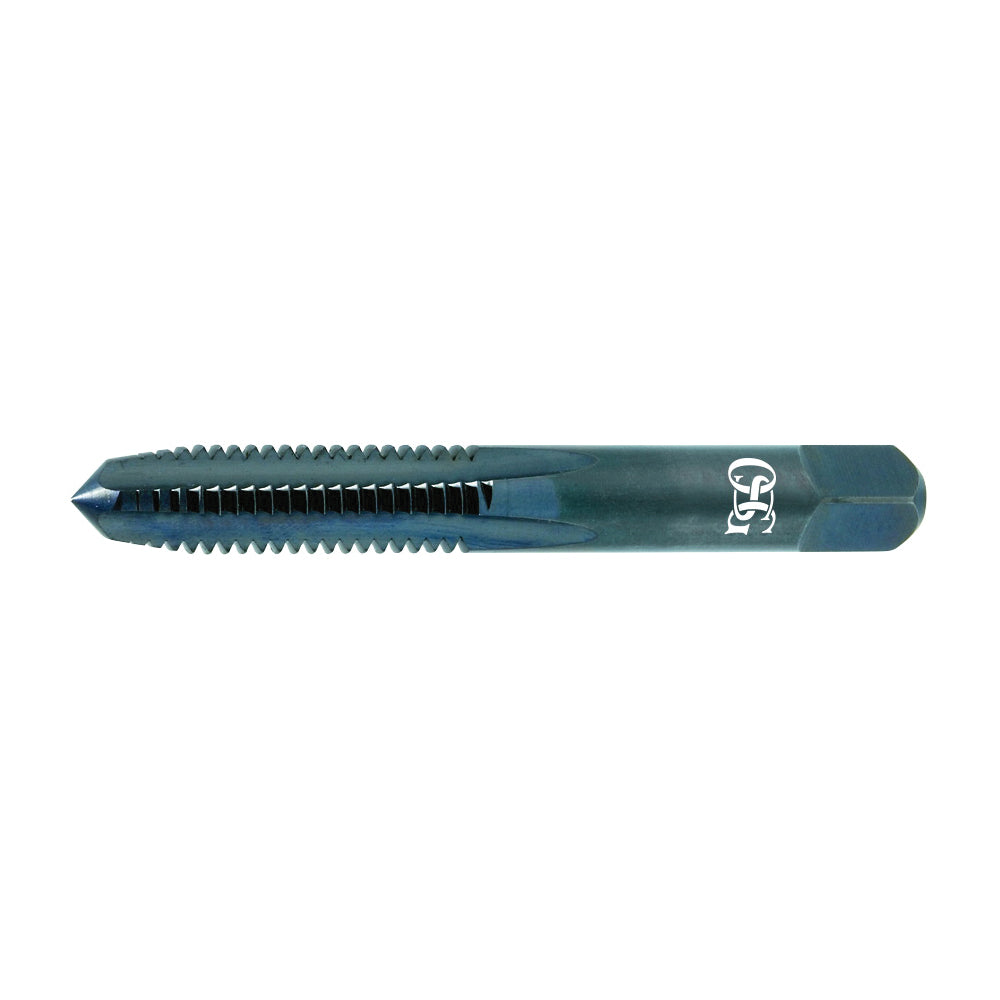

OSG 1012100 102 General Purpose Straight Flute Hand Tap, Right Hand Cutting, #4-40 Thread, H2 Thread Limit, 5P Taper Chamfer

Product Description

The OSG Straight Flute Hand Tap, MPN 1012100, is designed for general purpose threading. This is a right hand cutting tap suitable for threading applications in materials such as aluminum alloy, cast iron, and carbon steel.

• HSS material for durability
• Three flutes for efficient chip removal
• Right hand cutting direction for standard use

Product Highlights

This tap is suitable for a wide range of threading applications, providing consistent performance across various materials.

Product Information

Standard Information

• Brand: OSG
• MPN: 1012100

Technical Specifications

• Type: General Purpose
• Series: 102
• Material: HSS
• Thread Size: #4-40
• Chamfer Type: 5P Taper
• Shank Length: 1-3/16 inches
• Thread Limit: H2
• Thread Length: 0.37 inches
• Finish/Coating: Bright
• Overall Length: 1.87 inches
• Shank Diameter: 0.14 inches
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
