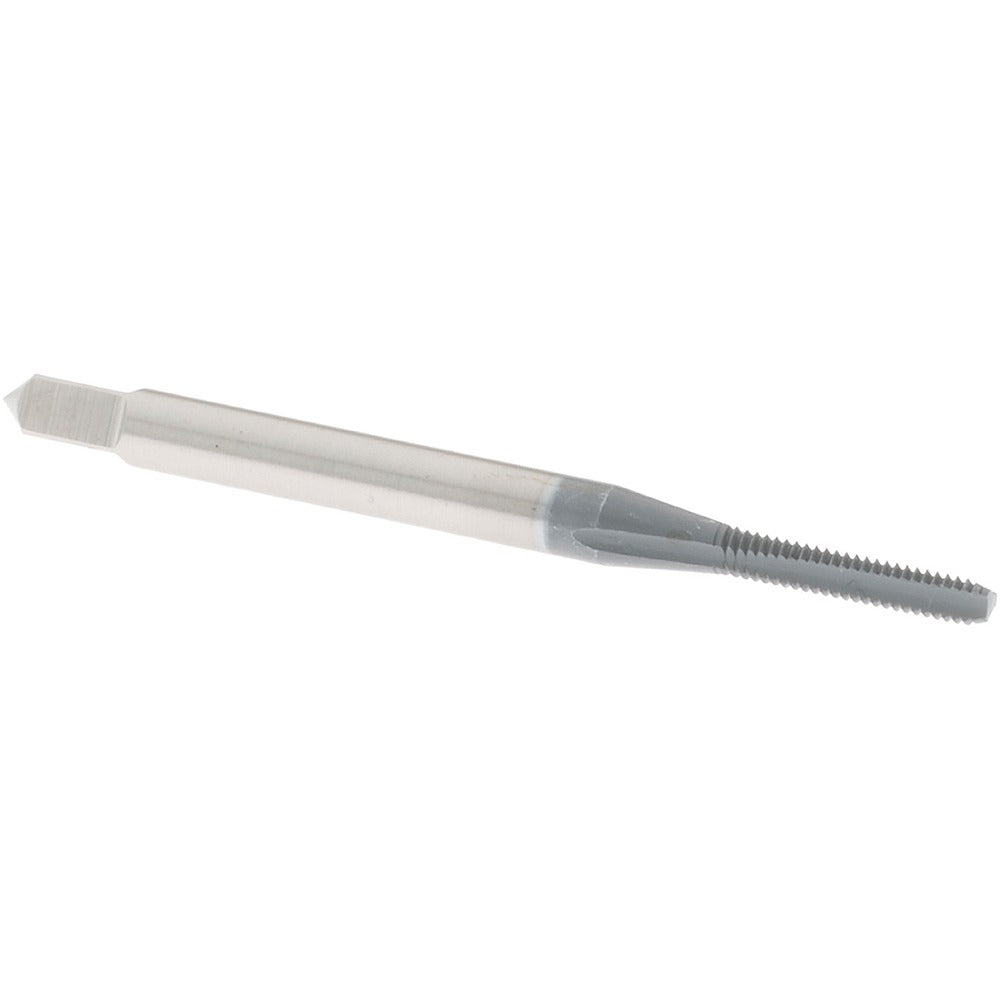

Osg 1011102 Straight Flute Tap 2-56 Unc Bottoming Hss

Product Description

The OSG 1011102 is a straight flute bottoming tap designed for threading 2-56 UNC holes in a wide range of ferrous and non-ferrous metals. Made from high-speed steel, it produces right-hand internal threads with a 2B class of fit and an H2 thread limit. The bottoming chamfer allows threading close to the bottom of blind holes, making it well suited for tight-tolerance work in small fastener applications. Three flutes provide chip clearance while maintaining rigidity in the small 2-56 thread size. Overall length is 1.75 inches with a thread length of 0.4375 inches.

This tap is used in machine shop and production environments where small-diameter 2-56 UNC threads are required. It is appropriate for both manual and CNC tapping operations on materials including aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel. The bottoming design is particularly useful in applications where thread depth must reach near the base of a drilled hole, such as electronic enclosures, instrument housings, and precision mechanical assemblies.

Key Features

• Bottoming chamfer for threading close to the bottom of blind holes
• High-speed steel construction provides wear resistance across a broad range of workpiece materials
• H2 thread limit maintains consistent 2B class of fit tolerances
• Three-flute geometry balances chip evacuation with tool strength at the 2-56 diameter
• Right-hand thread direction compatible with standard tapping toolholders and tap handles
• No coolant-through requirement simplifies setup in conventional machine environments

Compatibility

Designed for tapping 2-56 UNC threads in aluminum, cast aluminum, cast iron, low-carbon steel, medium-carbon steel, and high-carbon steel workpieces. Part of the OSG Series 102 straight flute tap line.

Installation Notes

This tap should be installed and operated by a machinist or tool-and-die professional familiar with small-diameter tapping practices. Always ensure the workpiece is properly fixtured and the correct tap drill size for 2-56 UNC is used before tapping. Apply appropriate cutting fluid for the workpiece material to reduce friction and extend tap life. Avoid excessive feed pressure, as small-diameter taps are susceptible to breakage if misaligned or overloaded.
