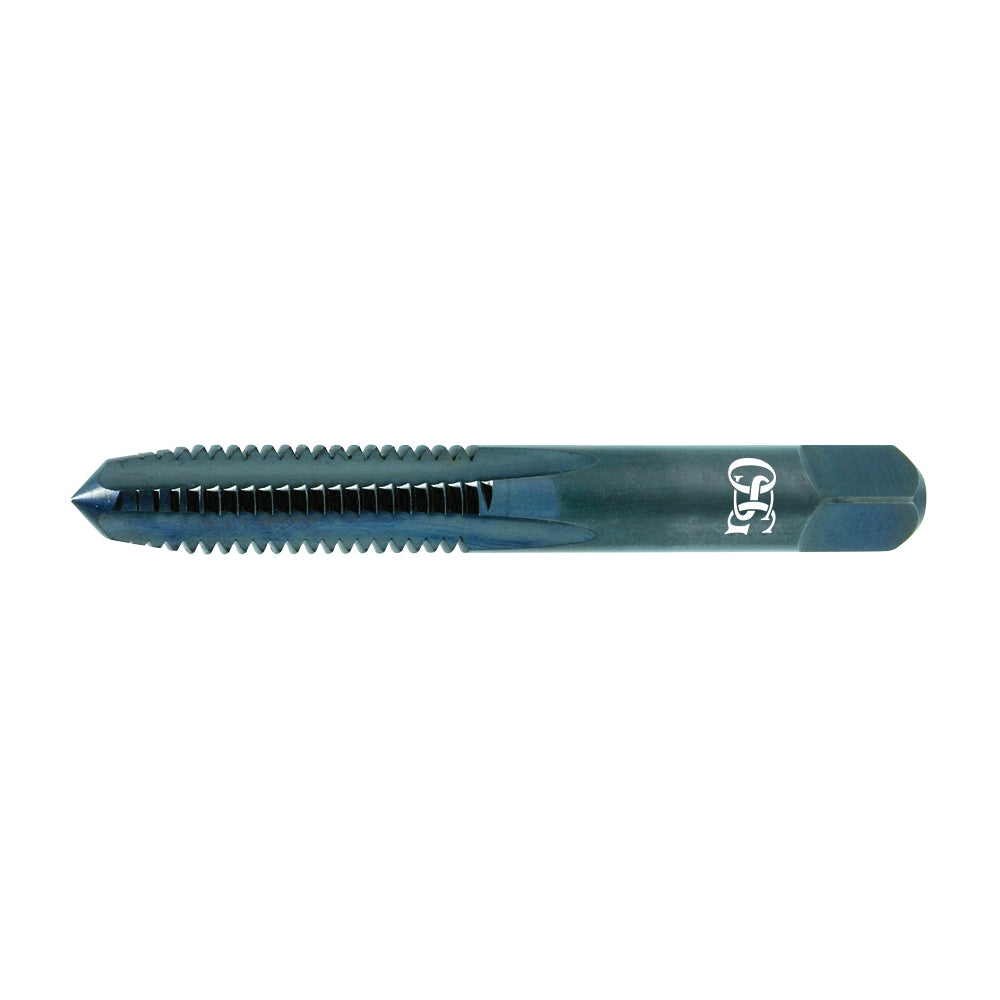

OSG 1010200 102 General Purpose Straight Flute Hand Tap Right Hand Cutting #0-80 Thread H2 Thread Limit

Product Description

OSG 1010200 is a general purpose straight flute hand tap designed for various threading applications. This tap is crafted for right hand cutting with a thread size of #0-80. It has a bright finish which aids in lubrication and wear resistance. Ideal for use on materials such as aluminum alloy, cast iron, and carbon steel.

• HSS material for durability and wear resistance
• Features two flutes for efficient chip removal
• Designed with a 1.5P-2P bottoming chamfer for threading

Product Highlights

This tap is suitable for both blind and through hole applications, making it versatile for different projects.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: JP

Technical Specifications

• Type: General Purpose
• Series: 102
• Material: HSS
• Thread Size: #0-80
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 1-9/32 in
• Thread Limit: H2
• Thread Length: 0.311 in
• Finish/Coating: Bright
• Overall Length: 1.62 in
• Shank Diameter: 0.14 in
• Thread Standard: UNF
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Cast Iron, Carbon Steel, Ferrous and Non-Ferrous Metal
• Through Coolant: No
