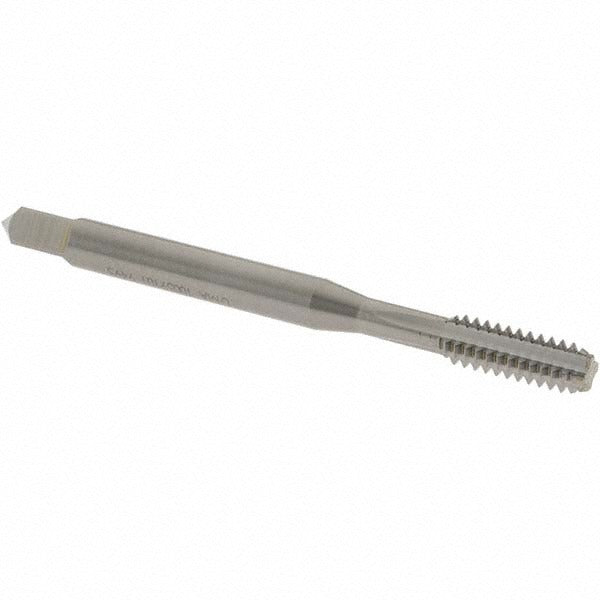

Osg 1005910100 Straight Flute Tap 10-24 Unc Bottoming

Product Description

The OSG 1005910100 is a straight flute machine tap designed for cutting 10-24 UNC internal threads in a bottoming configuration. Built from solid carbide with a bright/uncoated finish, this tap delivers the rigidity and wear resistance required for threading hard and abrasive materials. The 4-flute geometry and bottoming chamfer allow threading to the bottom of blind holes with minimal clearance. The overall length is 2.375 inches with a thread length of 0.492 inches (fractional: 7/8 inches). This tap is used by machinists and tool-and-die professionals in production and maintenance machining environments.

This tap is suited for use in machine tapping applications where thread accuracy and tool life are priorities. It is rated for a 2B class of fit, which is the standard tolerance for general-purpose UNC fastener threads. Material applications include aluminum, cast aluminum, cast iron, cobalt chrome, and copper alloy. The right-hand thread direction is standard for conventional tapping operations. The solid carbide construction makes it a strong choice for CNC tapping centers and rigid tapping setups where high RPM and consistent thread quality are required.

Key Features

• Solid carbide construction for superior rigidity and wear resistance in abrasive materials
• Bottoming chamfer for threading to the bottom of blind holes
• 4-flute design for accurate thread form and chip control
• 2B class of fit for general-purpose UNC thread tolerance
• Bright/uncoated finish suitable for use with cutting fluids across a range of materials
• Right-hand thread direction for standard tapping operations

Compatibility

Rated for use in aluminum, cast aluminum, cast iron, cobalt chrome, and copper alloy workpieces. Part of OSG Series 10059.

Installation Notes

This tap is intended for use by qualified machinists in machine tapping operations. Power down or lock out the machine spindle before loading or removing the tap from the holder. Use an appropriate tap holder rated for rigid tapping to prevent tool breakage. Apply a suitable cutting fluid for the workpiece material to extend tool life and maintain thread quality.
