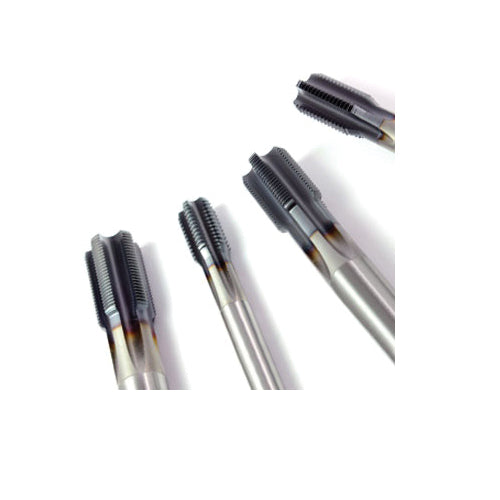

OSG 1005300708 EXO VPO-DC-HT Premium Straight Flute Oil Tap 3/8-16

Product Description

The OSG 1005300708 is an EXO VPO-DC-HT premium straight flute oil tap designed for reliable threading in various materials like cast aluminum, cast iron, and ductile iron. This tap features a right-hand cutting design with a thread size of 3/8-16 and comes with a 1.5P-2P bottoming chamfer. The four-flute design ensures efficient chip removal, making it suitable for both through and blind holes.

• Eccentric thread relief reduces friction during cutting.
• Straight flute design for maximum rigidity.
• Multi-layered TiCN V-coating enhances surface hardness.

Product Highlights

This tap excels in processing threads with its ultra-strong rake and VC-10 powdered metal substrate, making it ideal for ductile castings.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: Premium
• Series: 10053
• Material: VC-10
• Thread Size: 3/8-16
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 2-17/32 inches
• Thread Limit: H3
• Thread Length: 0.751 inches
• Finish/Coating: TiCN/V-Coated
• Overall Length: 3.93 inches
• Shank Diameter: 0.38 inches
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Cast Aluminum, Cast Iron, Ductile Casting, Ductile Iron, and Powdered Metal
• Through Coolant: Yes
