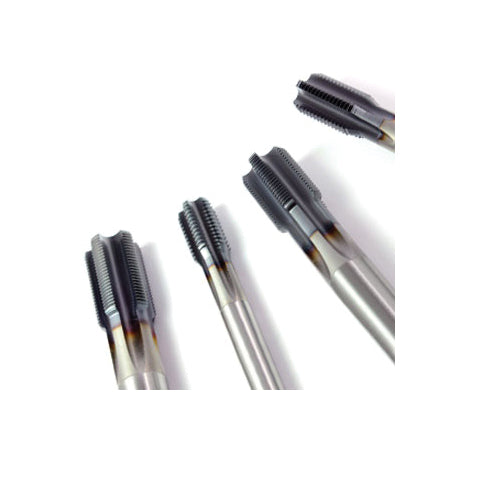

OSG 1005300408 EXO VPO-DC-HT Premium Straight Flute Oil Tap Right Hand Cutting 5/16-18

Product Description

The OSG 1005300408 EXO VPO-DC-HT is a premium straight flute oil tap designed for superior performance in threading applications. This tap features a right-hand cutting design and is suitable for use with various materials including cast aluminum, cast iron, and ductile iron. The tap measures five-sixteenths of an inch by eighteen threads per inch, ensuring precision in threading tasks.

• Eccentric thread relief minimizes heat and extends tap life.
• Compatible with both through and blind holes.
• Multi-layered TiCN coating enhances durability.

Product Highlights

This tap is ideal for professionals seeking a reliable tool for efficient threading.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Type: Premium
• Series: 10053
• Material: VC-10
• Thread Size: 5/16-18
• Chamfer Type: 1.5P-2P Bottoming
• Shank Length: 2-5/32 inches
• Thread Limit: H3
• Thread Length: 0.665 inches
• Finish/Coating: TiCN/V-Coated
• Overall Length: 3.54 inches
• Shank Diameter: 0.317 inches
• Thread Standard: UNC
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Cast Aluminum, Cast Iron, Ductile Iron, Ductile Casting, and Powdered Metal
• Through Coolant: Yes
